LKT 130

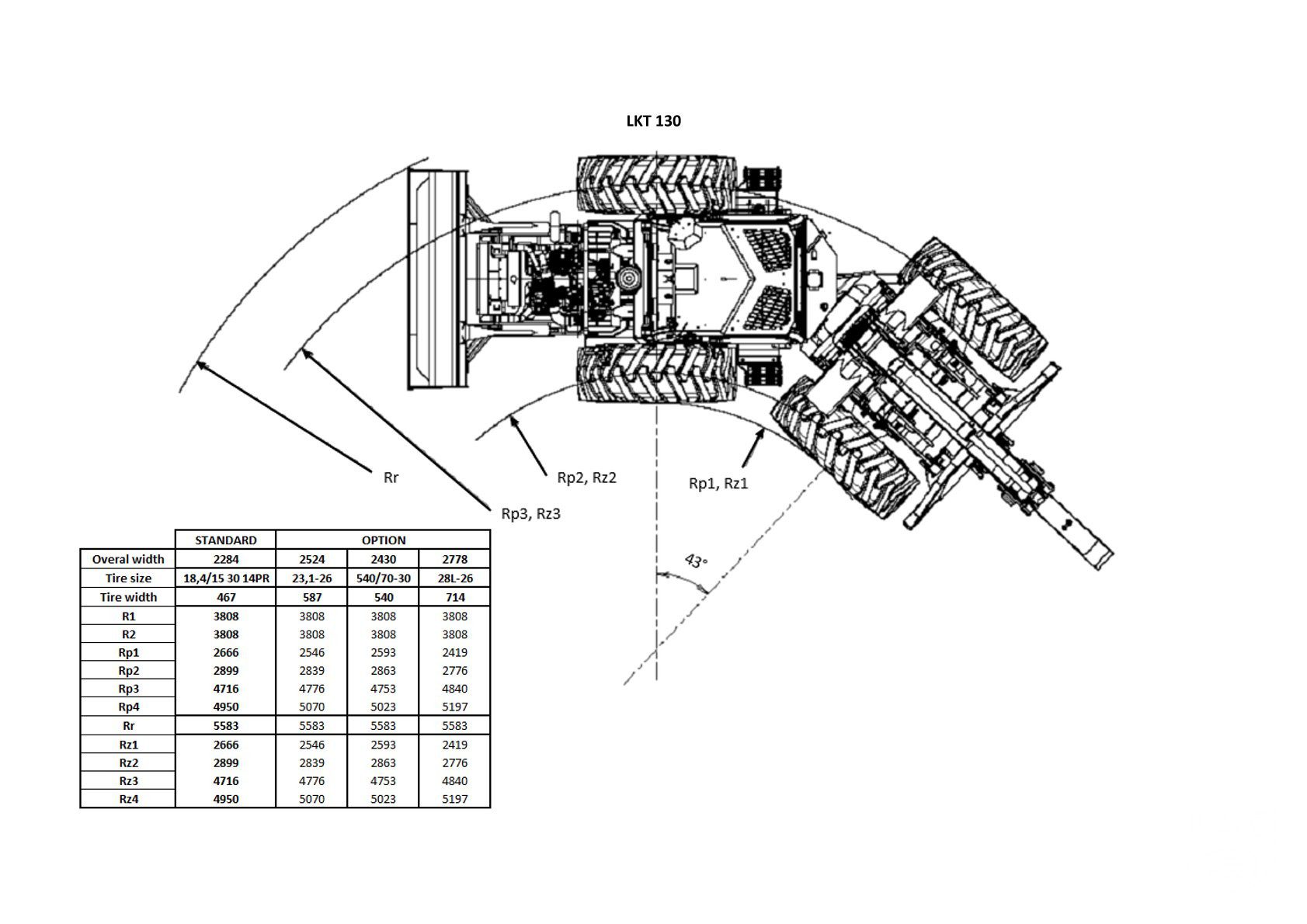

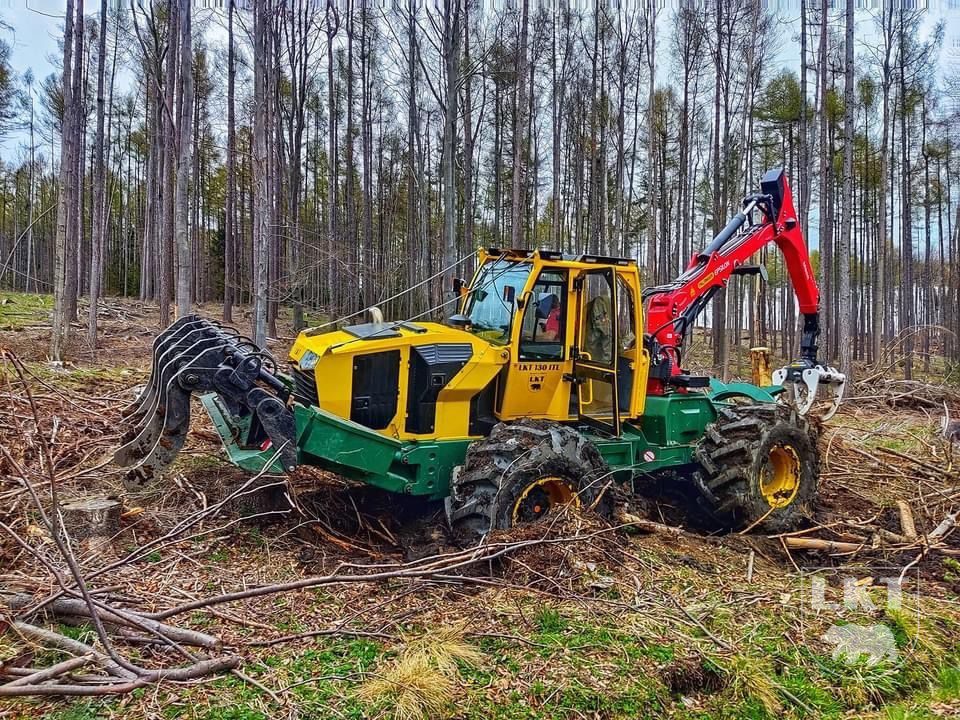

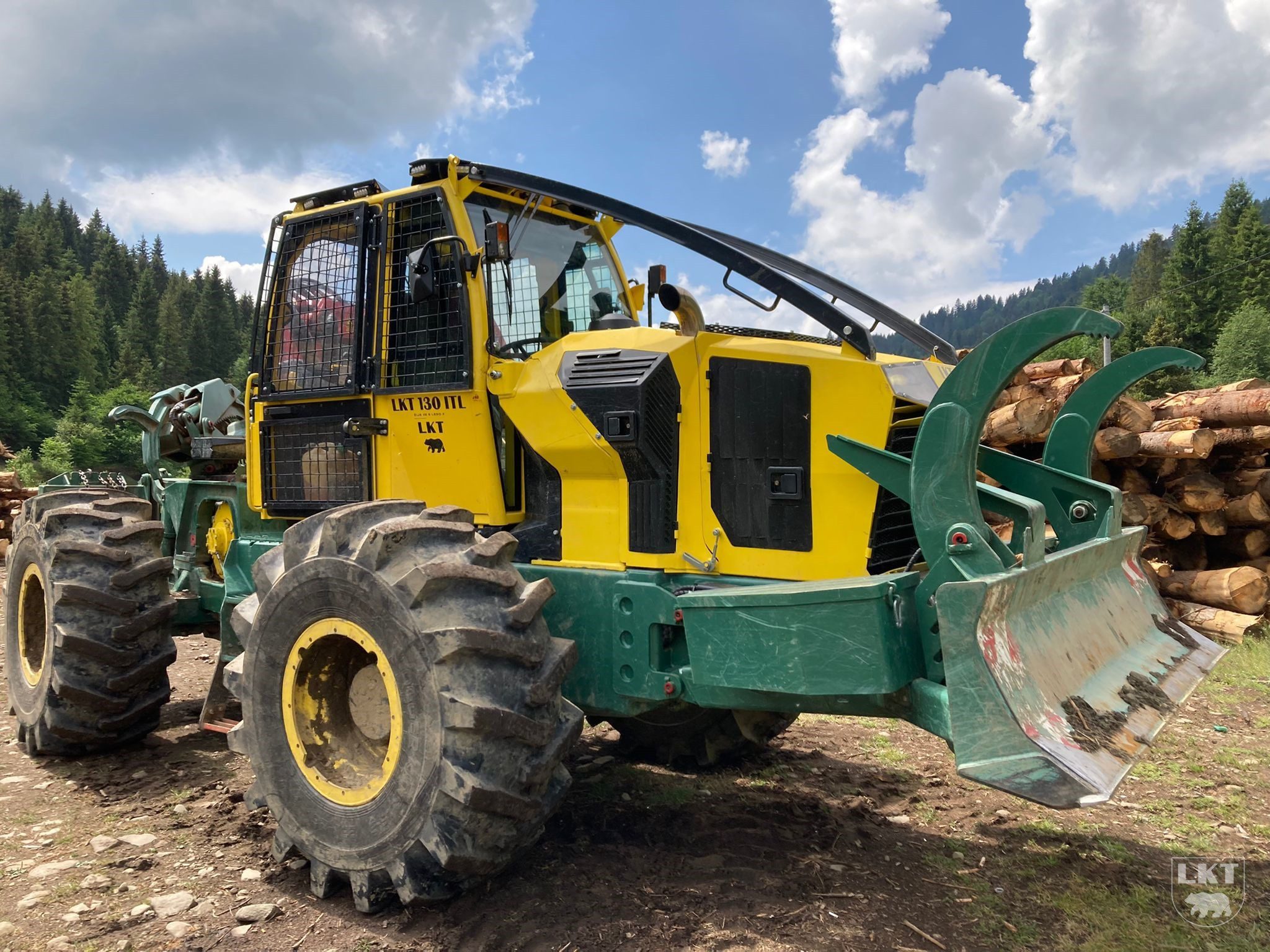

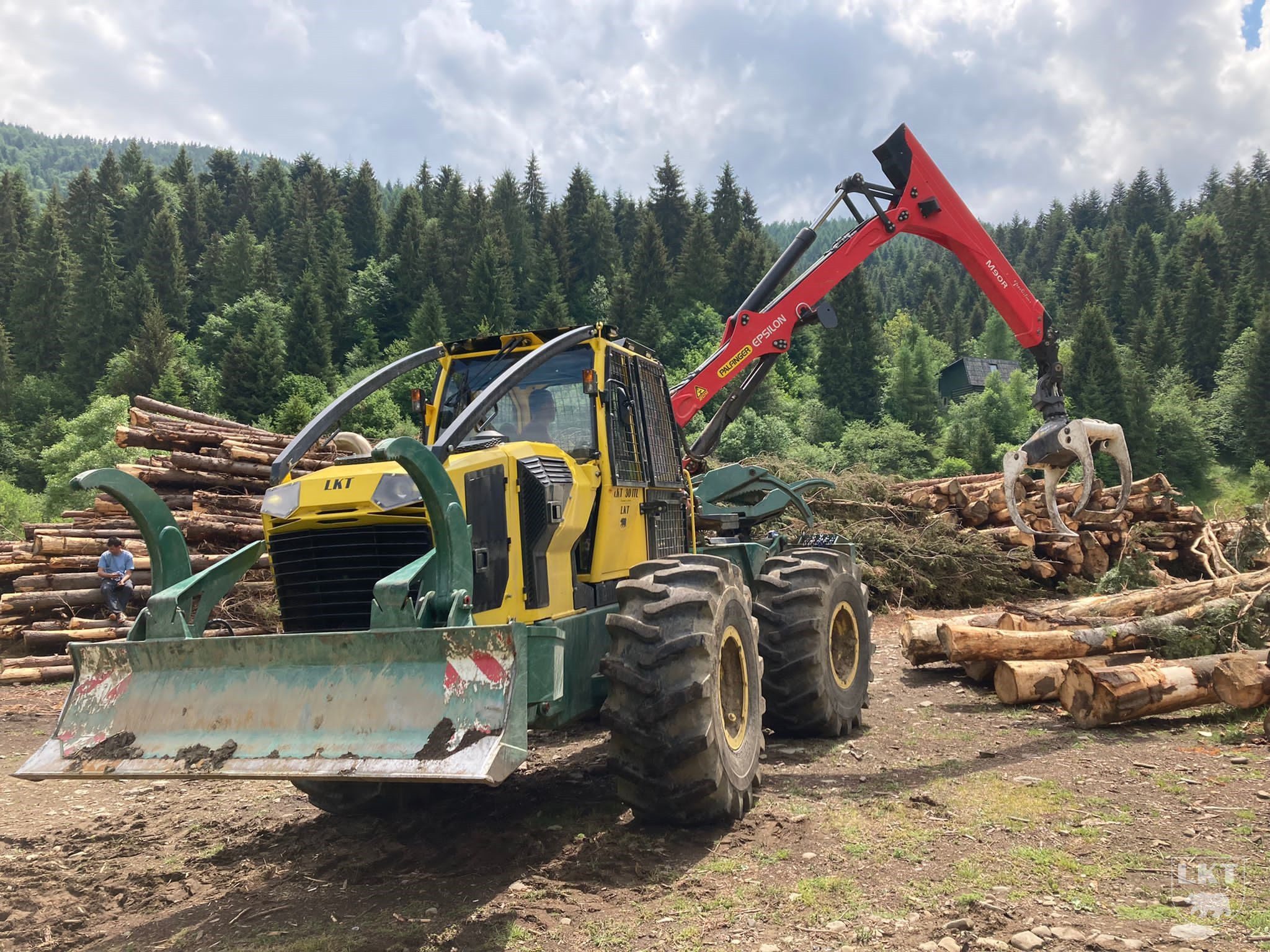

The concept of the LKT 130 forest wheel tractor retains the tried-and-tested classic layout of the LKT 81 ITL with all-wheel drive of the same size and a pivoting frame. The tractor is controlled by articulation of two hydraulic cylinders. Bending the frame around the vertical pins is possible up to 43 °.

More

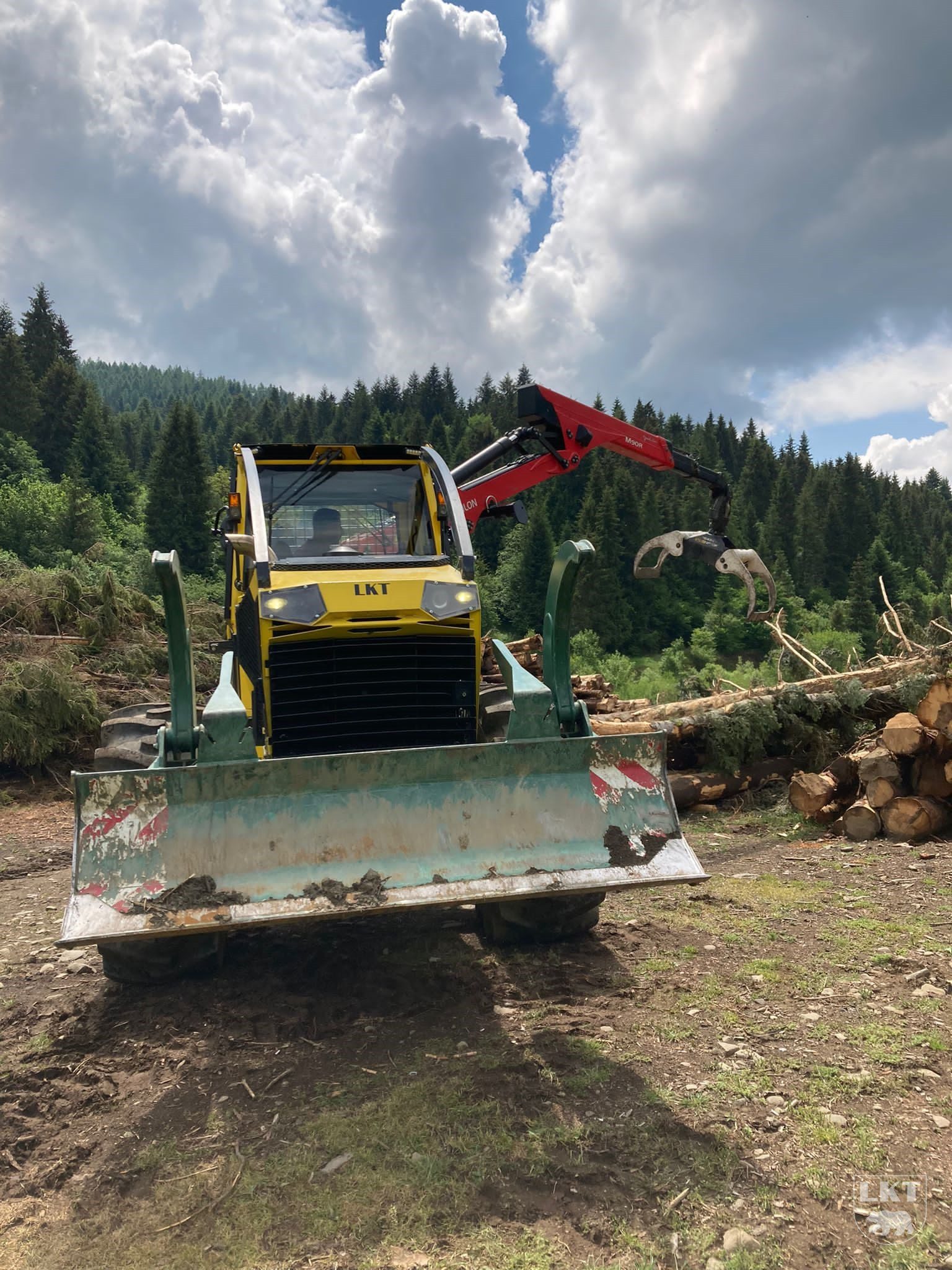

The chassis designed in this way in conjunction with the power unit, which is composed of a 108 kW engine, with a hydrodynamic transmission with shifting under load, a mechanical single-stage transmission and the possibility of blocking the hydrodynamic converter allows excellent maneuverability and driving in very complicated terrain. LKT 130 ITL is designed for pulling the logs from the stand by the method of collecting rope. It has an ideally dimensioned double-drum winch with a pulling force of 80 kN or, optional 100 kN. After pulling the logs to the tractor, they are transported by towing in a semi-hanging. The front blade is specially designed for ramping logs and can also be used for simple earthworks.

Main benefits

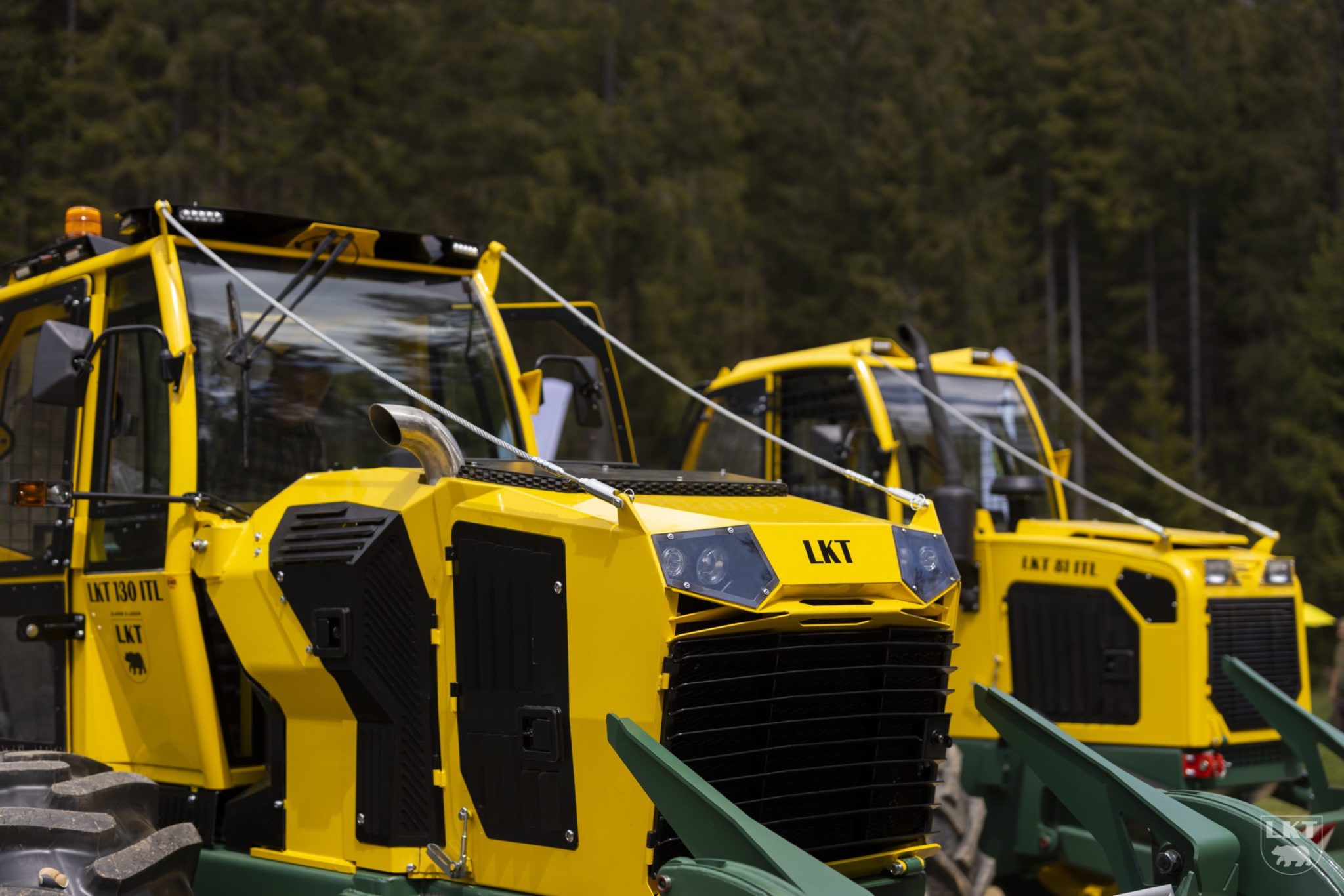

Safety cabine with modern design provides the operator higher comfort, allows better view on working place and better material handling
Two hydraulic articulation cylinders extend the service life, improve the stability of the machine and its strength
Gearbox with hydrodynamic converter provides precise and comfortable shifting under load (without clutch and stopping)
Optional remote control for driving and steering simplifies the operation of the tractor and increase safety work

Engine

Engine
Engine	CUMMINS, QSB 4,5, 4 cylinder, 115 kW/by 2000 rpm, STG V.
Type	diesel, 4-stroke with turbocharger
Fuel tank	110 l

Steering
Type	fully hydraulical servo steering, articulation of half frames by means of 2 (two) hydraulic pistons
Control	steering wheel with emergency steering

Transmission

Transmission
Type	hydrodynamic, shifting under load
Gearbox	mechanical, 2-gears, work/travel modes
Forward gears	6
Reverse gears	4 convertor blocking
Max speed	36 km/h

Axles
Producer
Differential	disc differential locking – electro-hydraulicaly operated
Service brakes	disc operation brakes with SAFIM brake valves
Parking brake	electro-hydraulical
Front axle	fixed
Rear axle	fixed

Tires
Size	18,4/15 – 30 14 PR

Standard equipment

Cab
Certification	ROPS, FOPS, OPS
Seat	air suspension, ventilated, mechanical swiwelling

Winch
Type	electro-hydraulicaly operated,double drum, free unwinching of the rope
Drive	hydromotor DANFOSS
Winch power	80 kN
Winching speed	0,8 m/s. max
Rope – diameter/length	12 mm/90 m or 13 mm/75 m

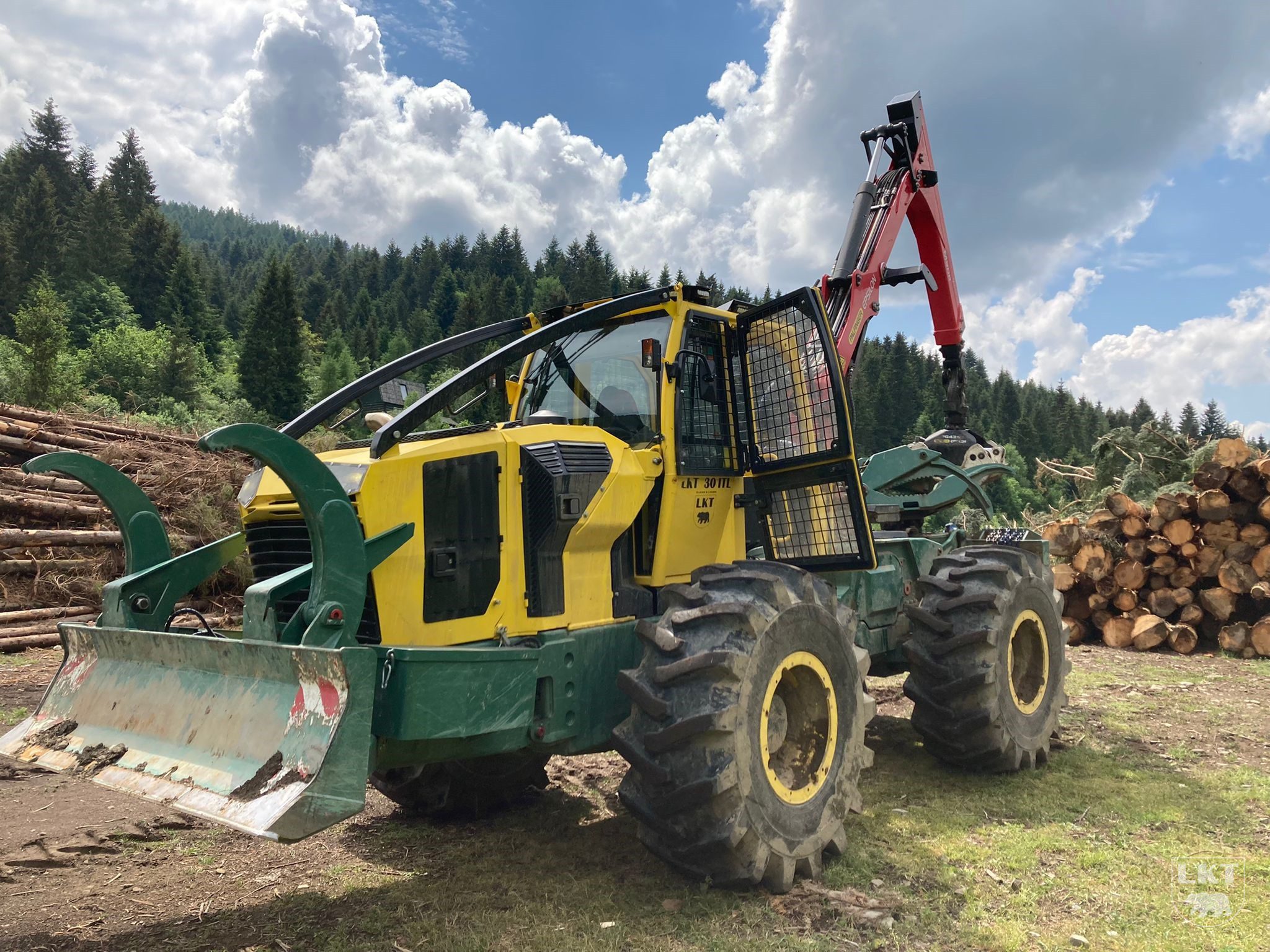

Front blade

Rear shield
tiltable, rocker arm system, hydraulicaly operated with high pedestal, guiding rollers

Frames
pivoting of the frames through axial bearing with possible hydraulic locking

Hydraulic work pump
displacement 75 cm3/rev

Hydraulic tank
110 l

Hydraulic working pressure
240 bar

Electrical system
Voltage	24 V
Alternator	70A/28V
Baterries	12V/50Ah, 2 ks
Starter	4 kW/24V

Weight
9 800 kg

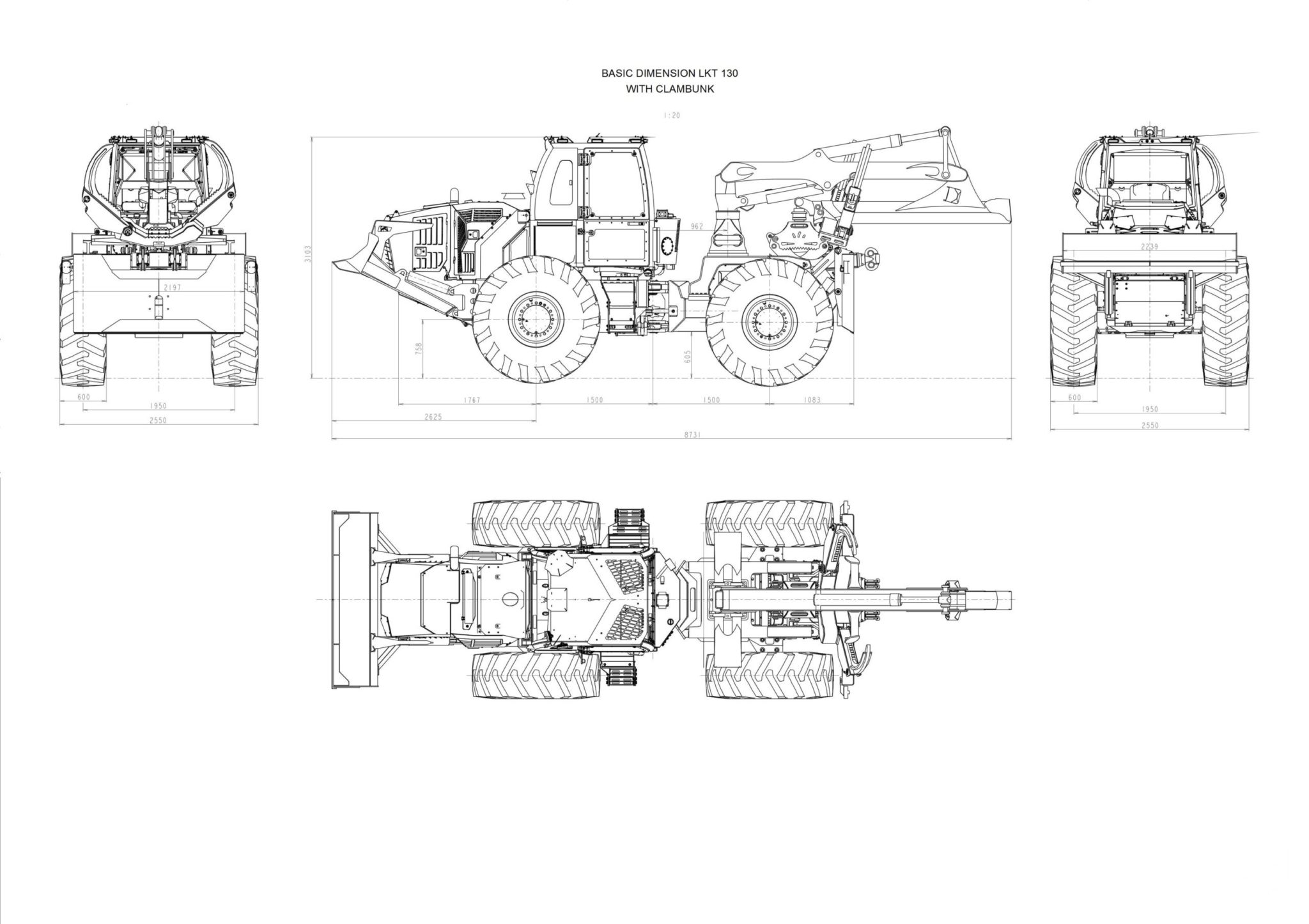

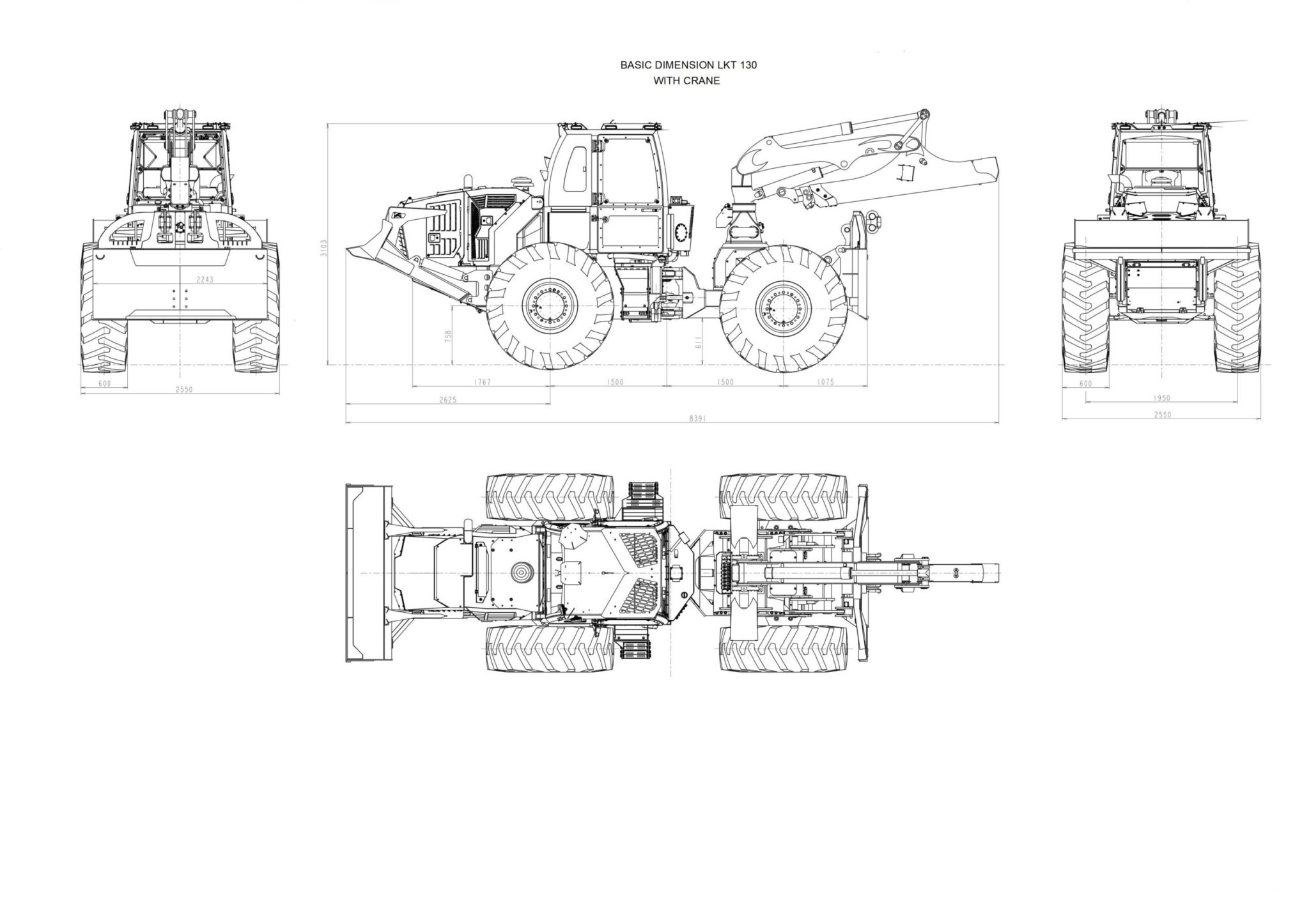

Dimensions
DxŠxV: 6.710 x 2.550 x 3.100 mm

Additional equipment

Options
Winch 2х100 kN, two-speed winch equipped with lamellas with ceramic lining, manual transmission operated electrohydraulically with a maximum winding speed of 1,2m/s, rope diameter/ lenght: 12mm/90m or 13 mm/ 70m 2х100 kN, two-speed winch equipped with lamellas with organic lining, automatic electrohydraulic control with maximum winding speed 1,2m/s , rope diameter/ lenght: 12mm/140m or 13 mm/ 120m 2х120 kN, two-speed winch equipped with lamellas with organic lining, automatic electrohydraulic control with maximum winding speed 1,2m/s, rope diameter/ lenght: 12mm/140m or 13 mm/ 120m lifting chain slings 2m WN-G10-8×24 + KSRV-8-G10 lifting chain slings 2,5m WN-G10-8×24 + KSRV-8-G10 lifting chain slings 2m WN-G10-10×235 + KSRV-10-G10 lifting chain slings 2,5m WN-G10-10×35 + KSRV-10-G10 skiding clamps GBGV 7/8-G10 10 pcs (2×5) skiding clamps GBGV 10-G10 10 pcs (2×5)
Axles NAF
Rear shield tilting, rocker arm system, low pedestal with guiding rollers and protection arcs tilting, rocker arm system, low pedestal, with spherical guiding rollers, protection arcs and rotating stake tilting, rocker arm system, low pedestal, with spherical guiding rollers, clampbunk tilting, independent moving frame with spherical guiding rollers tilting, independent moving frame with spherical guiding rollers and clampbunk
Front blade front blade with hydraulic pliers designed for gripping logs and assortments during handling wood, electrically operated by joystick tool boxes on the front blade – storage boxes – 2 pcs
Hydraulic crane hydraulic crane Epsilon Palfinger M 90 R80 with a reach of 8,0 m with the possibility of folding the hand into transport position with processing pressure up to 220 bar, floating position, woodlogs support, including support frame, hydraulic coupling and electrohydraulic controls in operators cabin hydraulic crane Epsilon Palfinger S 110 R80 with a reach of 8.0 m with the possibility of folding the hand into transport position with processing pressure up to 205 bar, floating position, woodlogs support, including support frame, hydraulic coupling and electrohydraulic controls in operators cabin hydraulic crane Epsilon Palfinger S 120 R80 with a reach of 8.0 m with the possibility of folding the hand into transport position with processing pressure up to 225 bar, floating position, woodlogs support, including support frame, hydraulic coupling and electrohydraulic controls in operators cabin lights (2 pcs) on the boom graber FG 37 – standard grab 0,36 m2 graber FG 43S – for big logs, only for type M/S cranes graber FG 31 R – grab for biomass, not for log manipulation
Tires incl. rims Nokian 540/70 – 30 Alliance 540/70 – 30 Tianli 23,1 – 26 Tianli 28L – 26 anti-slip chains FORSTGRIP FG 202 3/1 SP (18,4 – 30), eye chain avarage: 12,5 mm, 1 pair anti-slip chains FORSTGRIP FG 202 3/2 SP (18,4 – 30), eye chain avarage: 12,5 mm, 1 pair anti-slip chains FORSTGRIP FG 206 3/1 SP (540/70 – 30), eye chain avarage: 12,5 mm, 1 pair anti-slip chains FORSTGRIP FG 206 3/2 SP (540/70 – 30), eye chain avarage: 12,5 mm, 1 pair anti-slip chains FORSTGRIP FG 220 3/1 SP (23,1 – 26), eye chain avarage: 12,5 mm, 1 pair anti-slip chains FORSTGRIP FG 220 6/1 SP (23,1 – 26), eye chain avarage: 15,5 mm, 1 pair antislip chains FORSTGRIP FG 234 3/1 SP (28,1 – 26), eye chain avarage: 12,5 mm, 1 pair antislip chains FORSTGRIP FG 234 6/2 SP (28,1 – 26), eye chain avarage: 15,5 mm, 1 pair
Remote control TERRA FUNK FA5 (start – stop system, winch control, throttle regulation) TERRA FUNK FA7 (start – stop system, travel control of machine, winches, rear shield and throttle regulation)
Cabin rotating workstation – seat BE-GE 31 heated with air suspension, mechanical swivelling, armrests (right, left) and joysticks, pedals on rotating workstation rotating workstation – seat BE-GE 31 heated with air suspension, electric brake, mechanical swivelling, armrests (right, left) and joysticks, pedals on rotating workstation pretictive seatcovers (LKT) mechanical swiveling air-condition Eberschpecher with independent cooler and ventilator radio with CD and USB port cab protection with protective iron grid rear window 1x front side window 2x upper rear side window 1x lower rear side window 1x upper part of door 2x lower part of door 2x side working LED lighting (2×2) engine preheating (heating of circulating cooling system))
Others coupling for trailer – 14t hydraulic coupler – hydraulic quick couplings (for powering of attachments as: milling cutters, mulchers, drive and braking of the trailer) fuel flow meter hydraulic oil – BIO oil instead of mineral oil

Options

Winch

2х100 kN, two-speed winch equipped with lamellas with ceramic lining, manual transmission operated electrohydraulically with a maximum winding speed of 1,2m/s, rope diameter/ lenght: 12mm/90m or 13 mm/ 70m
2х100 kN, two-speed winch equipped with lamellas with organic lining, automatic electrohydraulic control with maximum winding speed 1,2m/s , rope diameter/ lenght: 12mm/140m or 13 mm/ 120m
2х120 kN, two-speed winch equipped with lamellas with organic lining, automatic electrohydraulic control with maximum winding speed 1,2m/s, rope diameter/ lenght: 12mm/140m or 13 mm/ 120m
lifting chain slings 2m WN-G10-8×24 + KSRV-8-G10
lifting chain slings 2,5m WN-G10-8×24 + KSRV-8-G10
lifting chain slings 2m WN-G10-10×235 + KSRV-10-G10
lifting chain slings 2,5m WN-G10-10×35 + KSRV-10-G10
skiding clamps GBGV 7/8-G10 10 pcs (2×5)
skiding clamps GBGV 10-G10 10 pcs (2×5)

Axles

NAF

Rear shield

tilting, rocker arm system, low pedestal with guiding rollers and protection arcs
tilting, rocker arm system, low pedestal, with spherical guiding rollers, protection arcs and rotating stake
tilting, rocker arm system, low pedestal, with spherical guiding rollers, clampbunk
tilting, independent moving frame with spherical guiding rollers
tilting, independent moving frame with spherical guiding rollers and clampbunk

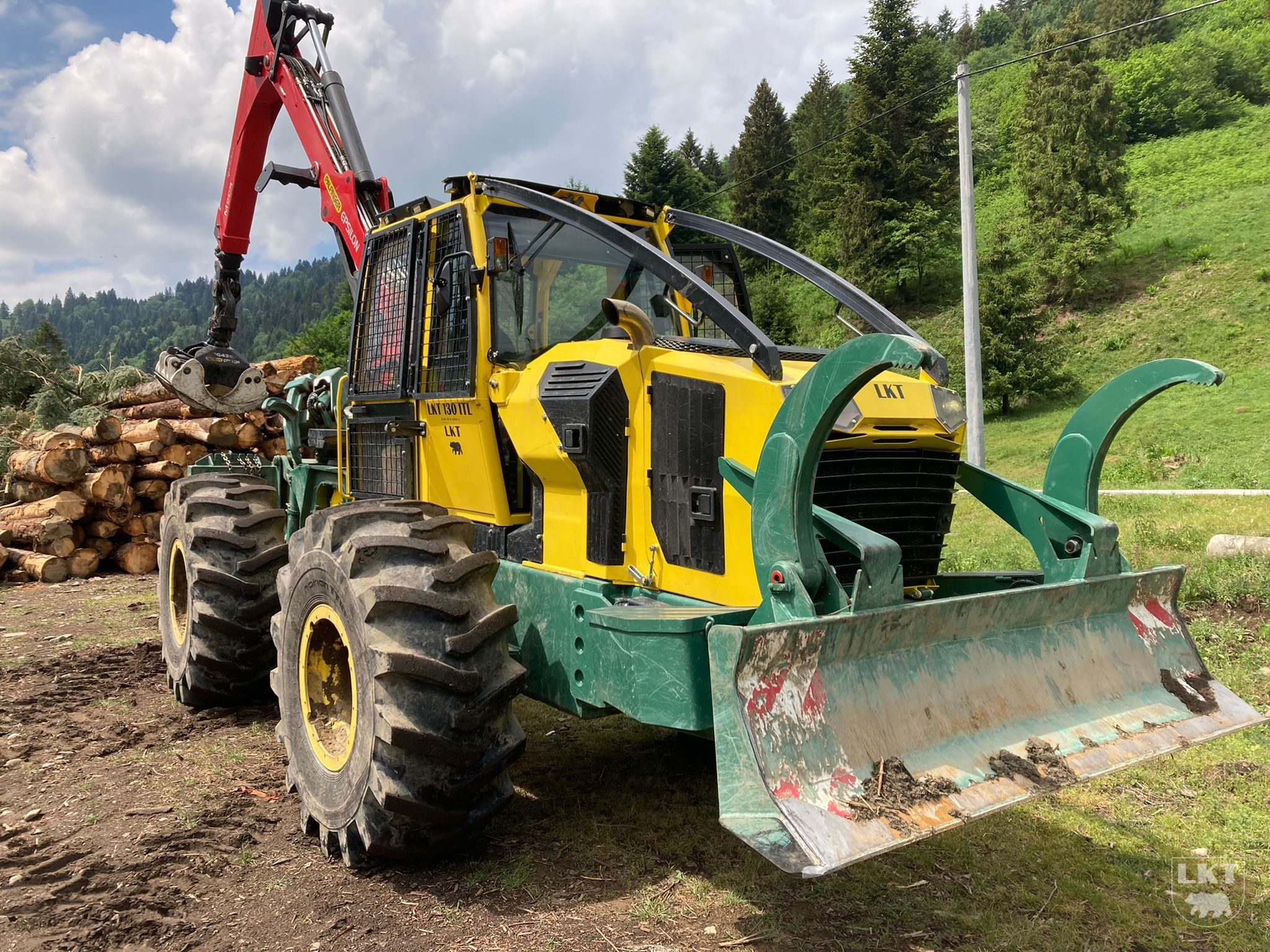

Front blade

front blade with hydraulic pliers designed for gripping logs and assortments during handling wood, electrically operated by joystick
tool boxes on the front blade – storage boxes – 2 pcs

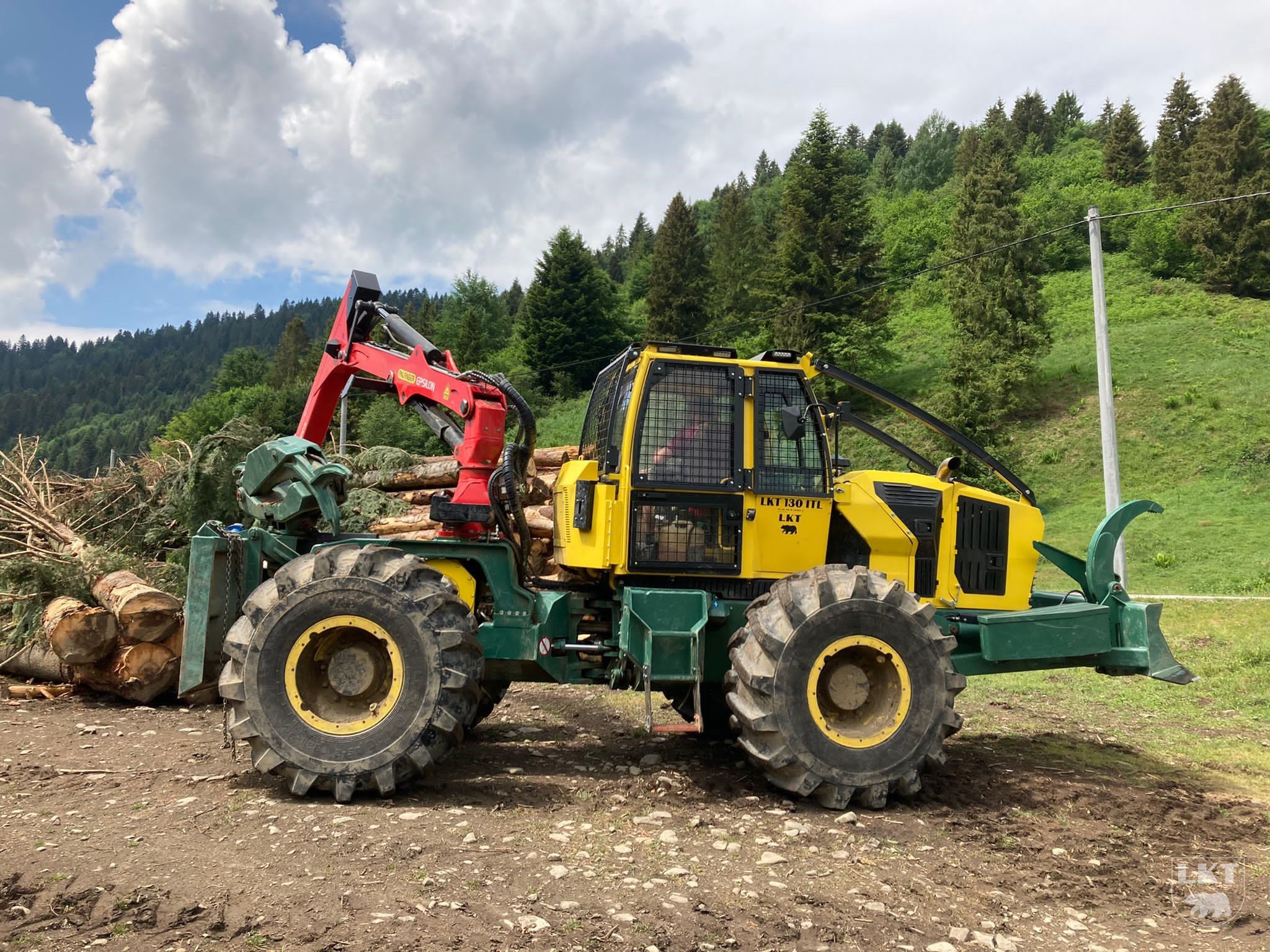

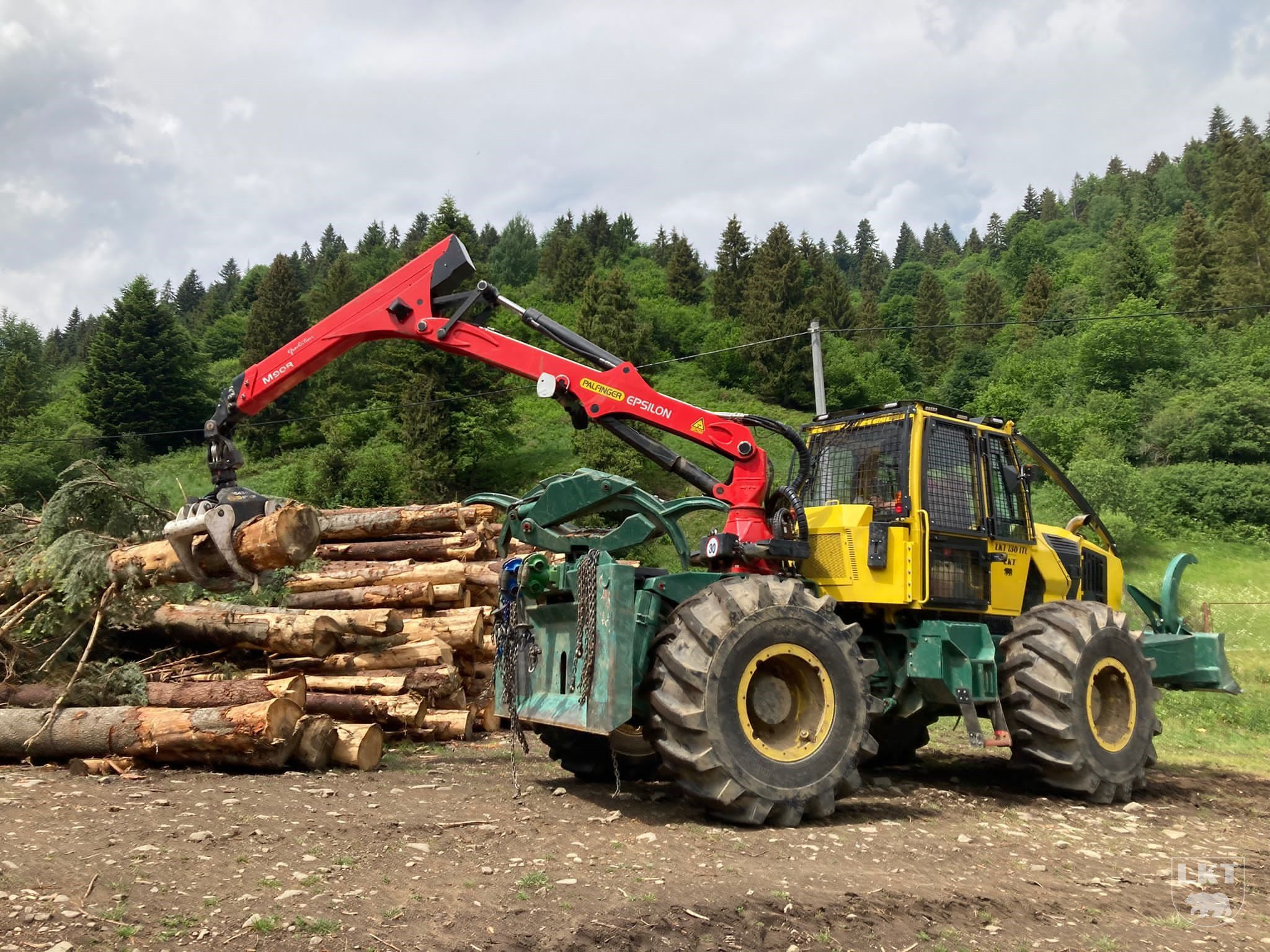

Hydraulic crane

hydraulic crane Epsilon Palfinger M 90 R80 with a reach of 8,0 m with the possibility of folding the hand into transport position with processing pressure up to 220 bar, floating position, woodlogs support, including support frame, hydraulic coupling and electrohydraulic controls in operators cabin
hydraulic crane Epsilon Palfinger S 110 R80 with a reach of 8.0 m with the possibility of folding the hand into transport position with processing pressure up to 205 bar, floating position, woodlogs support, including support frame, hydraulic coupling and electrohydraulic controls in operators cabin
hydraulic crane Epsilon Palfinger S 120 R80 with a reach of 8.0 m with the possibility of folding the hand into transport position with processing pressure up to 225 bar, floating position, woodlogs support, including support frame, hydraulic coupling and electrohydraulic controls in operators cabin
lights (2 pcs) on the boom
graber FG 37 – standard grab 0,36 m2
graber FG 43S – for big logs, only for type M/S cranes
graber FG 31 R – grab for biomass, not for log manipulation

Tires incl. rims

Nokian 540/70 – 30
Alliance 540/70 – 30
Tianli 23,1 – 26
Tianli 28L – 26
anti-slip chains FORSTGRIP FG 202 3/1 SP (18,4 – 30), eye chain avarage: 12,5 mm, 1 pair
anti-slip chains FORSTGRIP FG 202 3/2 SP (18,4 – 30), eye chain avarage: 12,5 mm, 1 pair
anti-slip chains FORSTGRIP FG 206 3/1 SP (540/70 – 30), eye chain avarage: 12,5 mm, 1 pair
anti-slip chains FORSTGRIP FG 206 3/2 SP (540/70 – 30), eye chain avarage: 12,5 mm, 1 pair
anti-slip chains FORSTGRIP FG 220 3/1 SP (23,1 – 26), eye chain avarage: 12,5 mm, 1 pair
anti-slip chains FORSTGRIP FG 220 6/1 SP (23,1 – 26), eye chain avarage: 15,5 mm, 1 pair
antislip chains FORSTGRIP FG 234 3/1 SP (28,1 – 26), eye chain avarage: 12,5 mm, 1 pair
antislip chains FORSTGRIP FG 234 6/2 SP (28,1 – 26), eye chain avarage: 15,5 mm, 1 pair

Remote control

TERRA FUNK FA5 (start – stop system, winch control, throttle regulation)
TERRA FUNK FA7 (start – stop system, travel control of machine, winches, rear shield and throttle regulation)

Cabin

rotating workstation – seat BE-GE 31 heated with air suspension, mechanical swivelling, armrests (right, left) and joysticks, pedals on rotating workstation
rotating workstation – seat BE-GE 31 heated with air suspension, electric brake, mechanical swivelling, armrests (right, left) and joysticks, pedals on rotating workstation
pretictive seatcovers (LKT)
mechanical swiveling
air-condition Eberschpecher with independent cooler and ventilator
radio with CD and USB port
cab protection with protective iron grid
- rear window 1x
- front side window 2x
- upper rear side window 1x
- lower rear side window 1x
- upper part of door 2x
- lower part of door 2x
side working LED lighting (2×2)
engine preheating (heating of circulating cooling system))

Others

coupling for trailer – 14t
hydraulic coupler – hydraulic quick couplings (for powering of attachments as: milling cutters, mulchers, drive and braking of the trailer)
fuel flow meter
hydraulic oil – BIO oil instead of mineral oil
