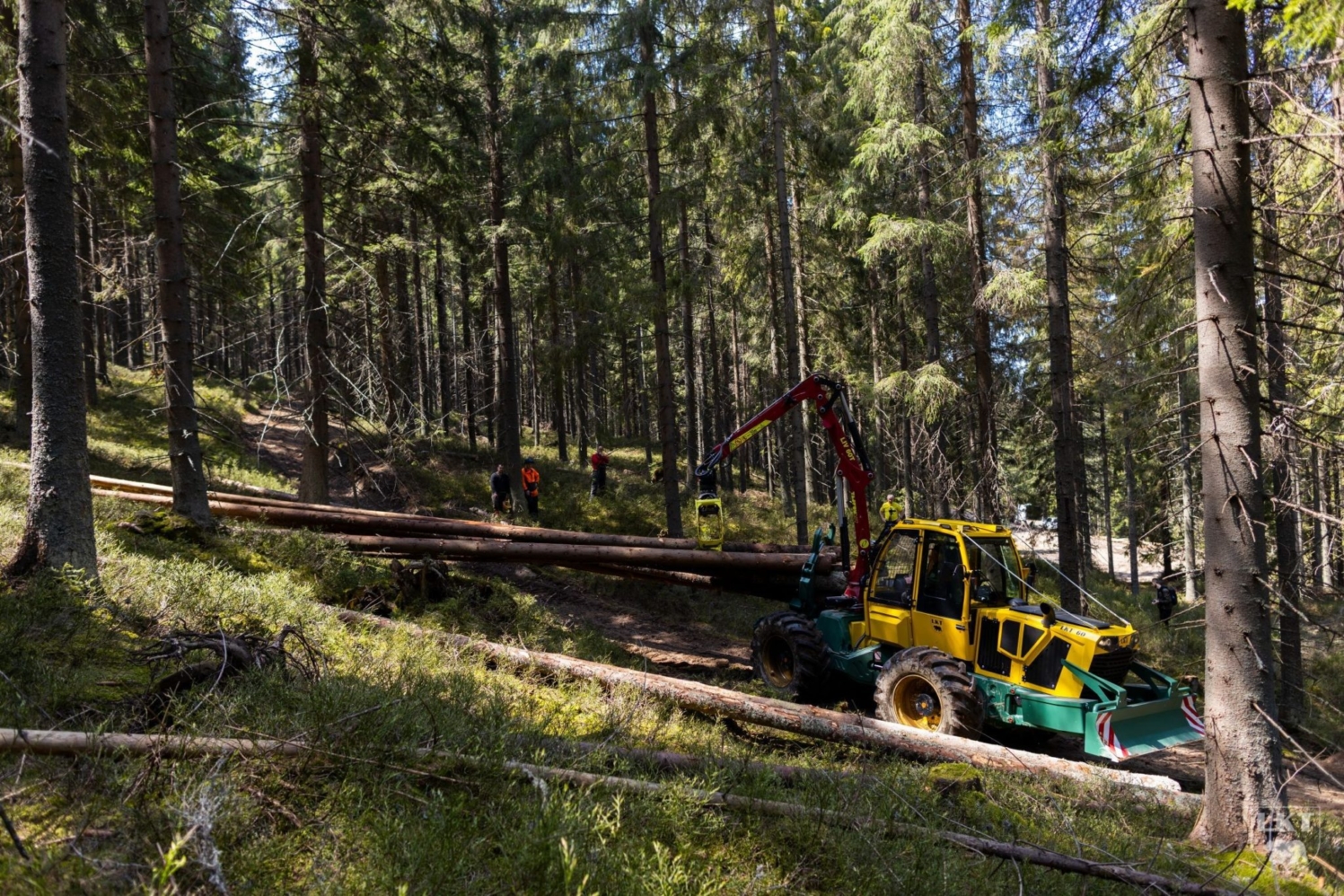

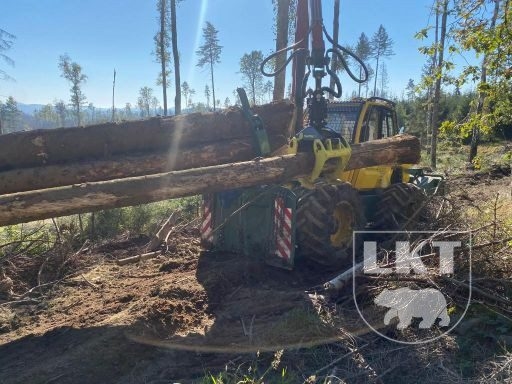

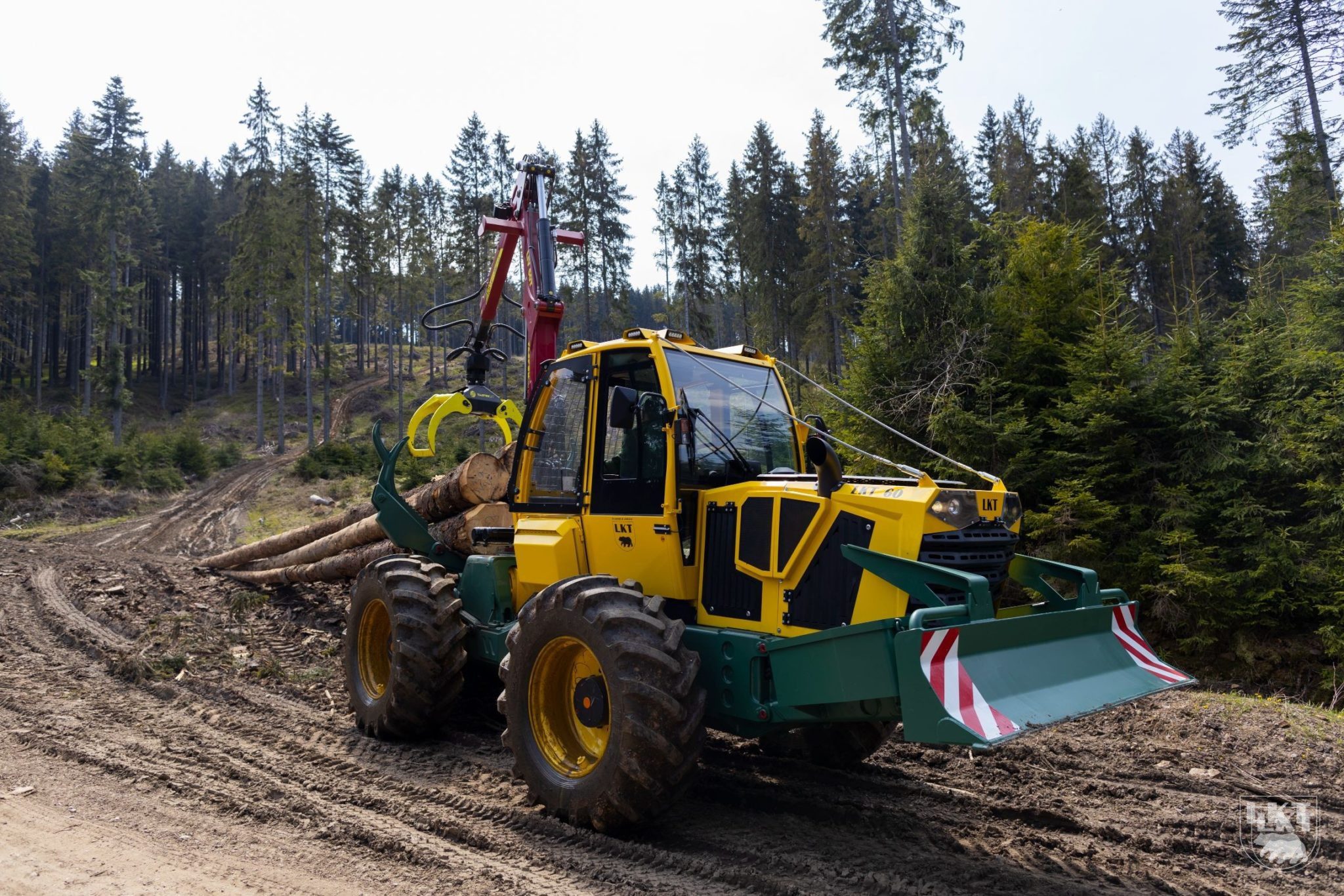

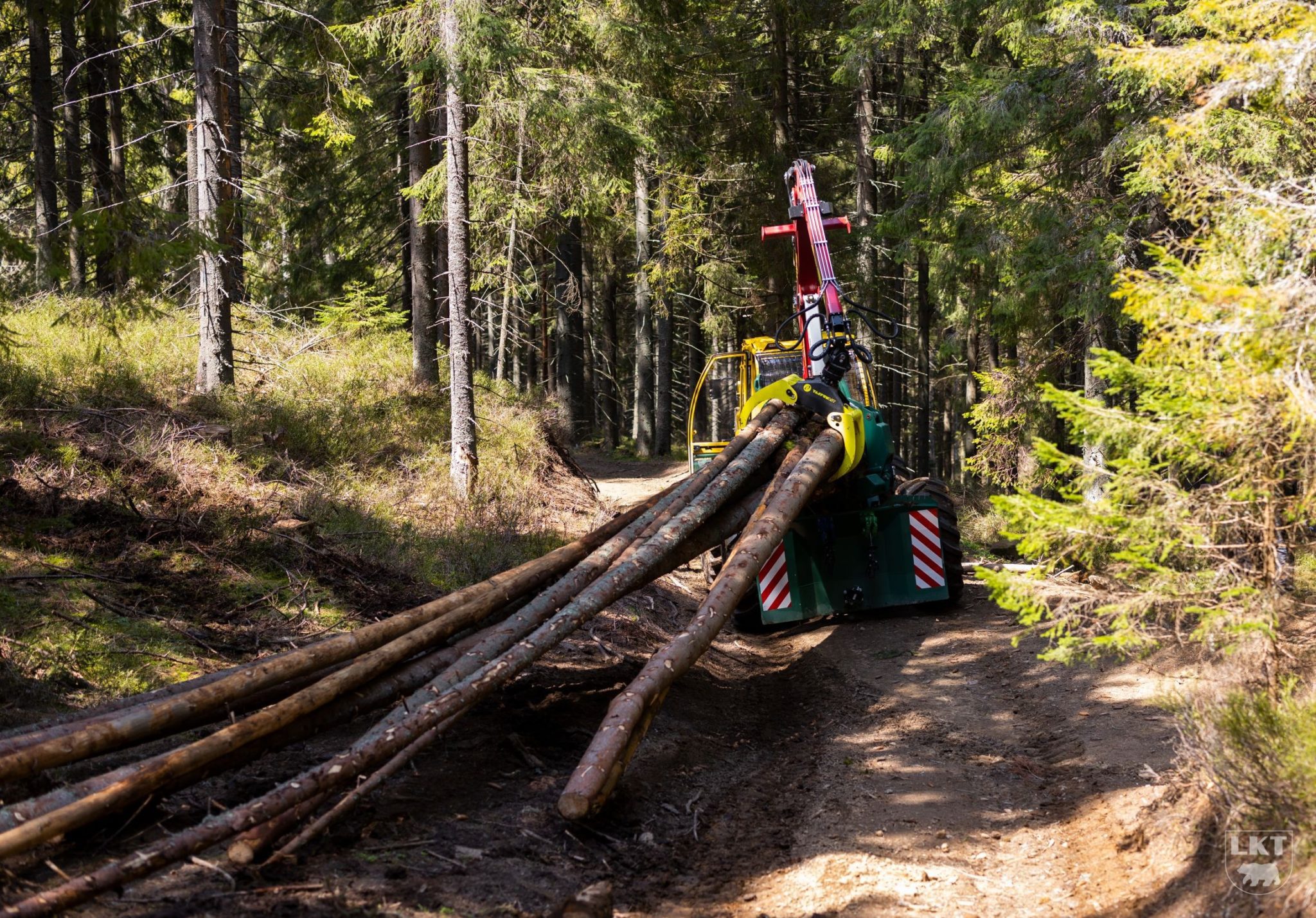

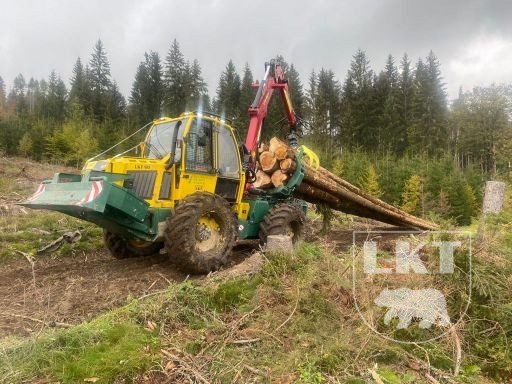

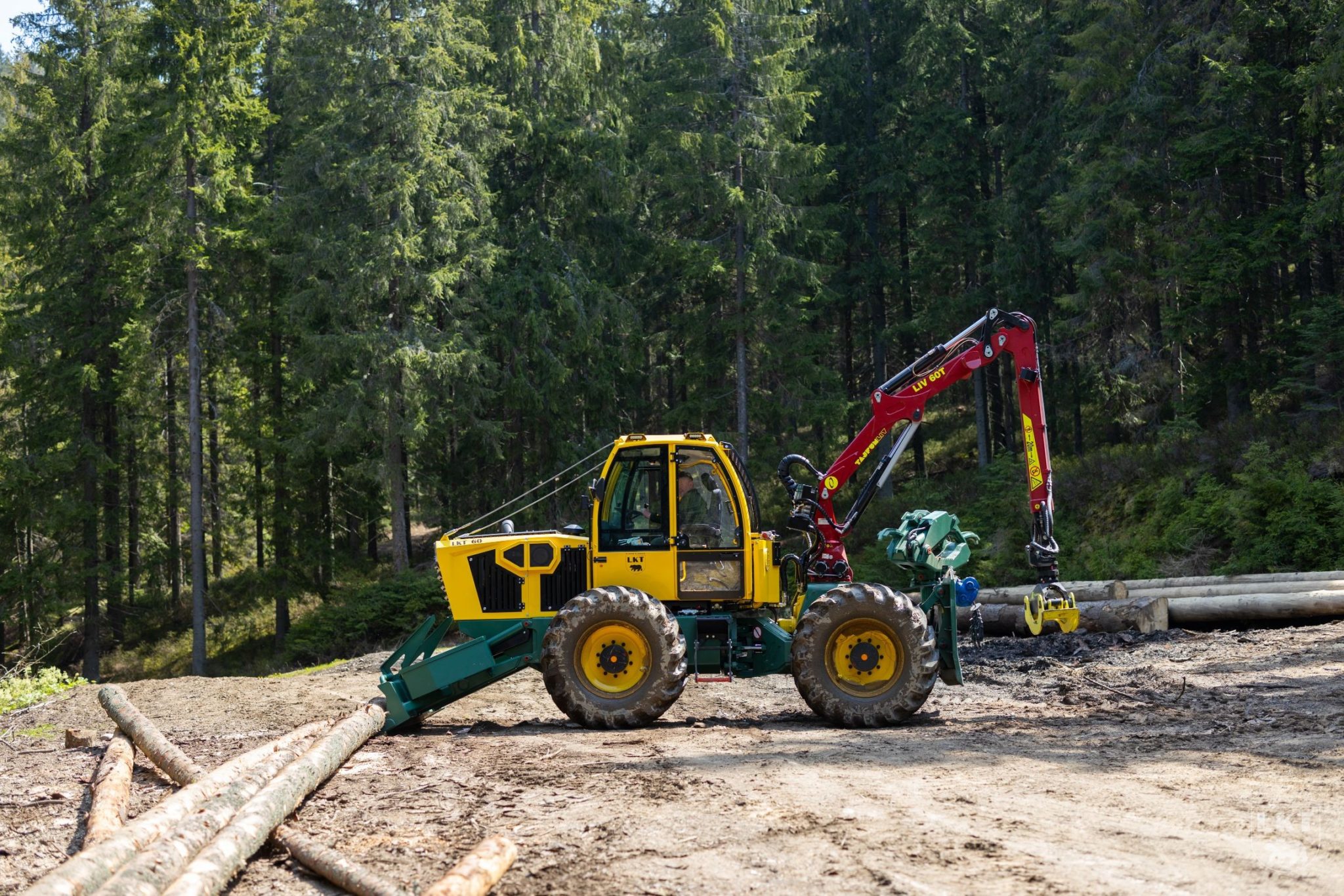

LKT 60

With its parameters and power (wheelbase 2.5 m and power 90 kW), the LKT 60 will find application mainly in educational logging for and partly also in restoration interventions. The size and weight of the machine LKT 60 are close to the primary type LKT 81 T, but its technology and features meet the latest requirements. In comparation to other models or brands, LKT 60 has a huge the advantage thanks to its low weight and pressure on the forest soil especially in national parks, flysch areas.

More

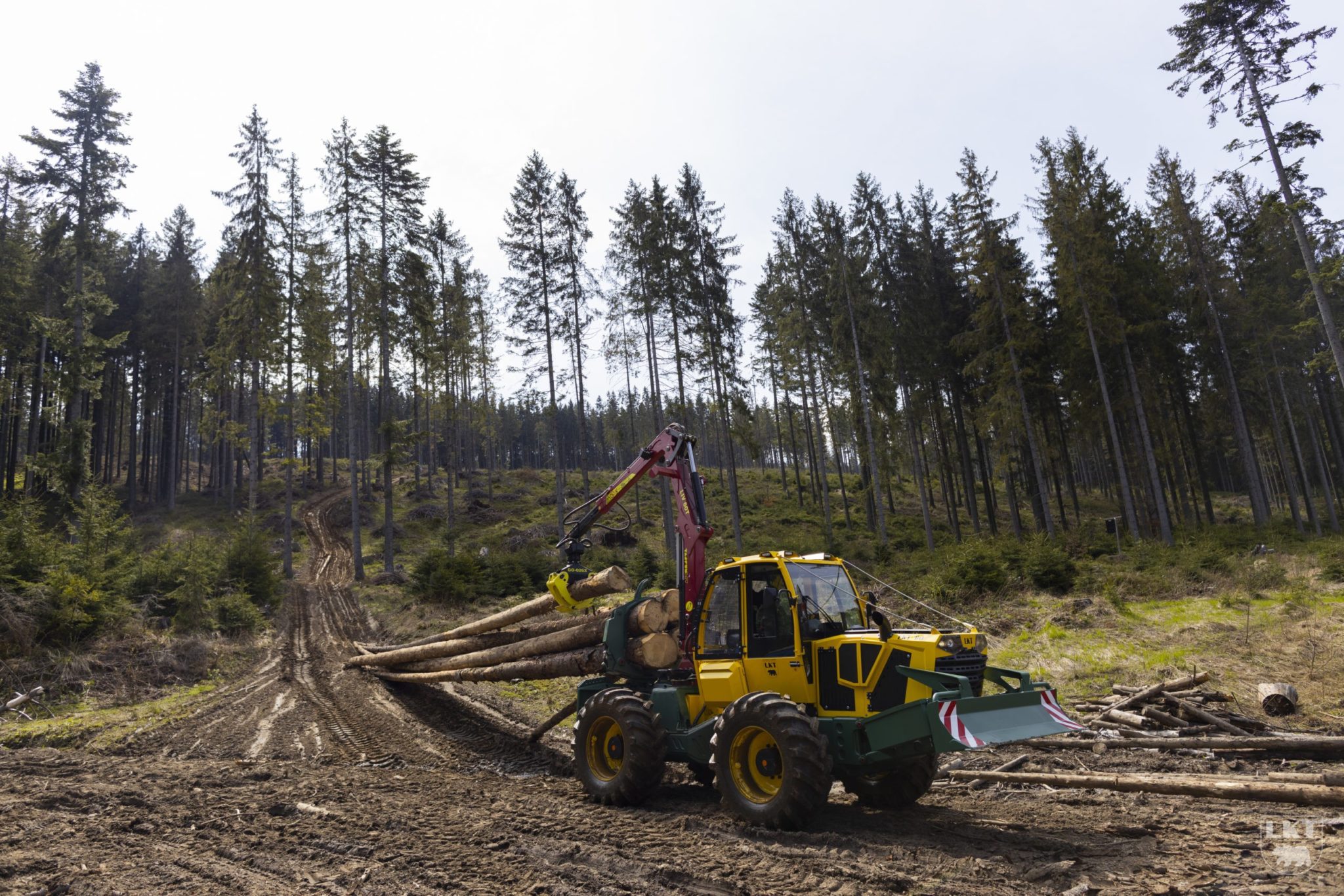

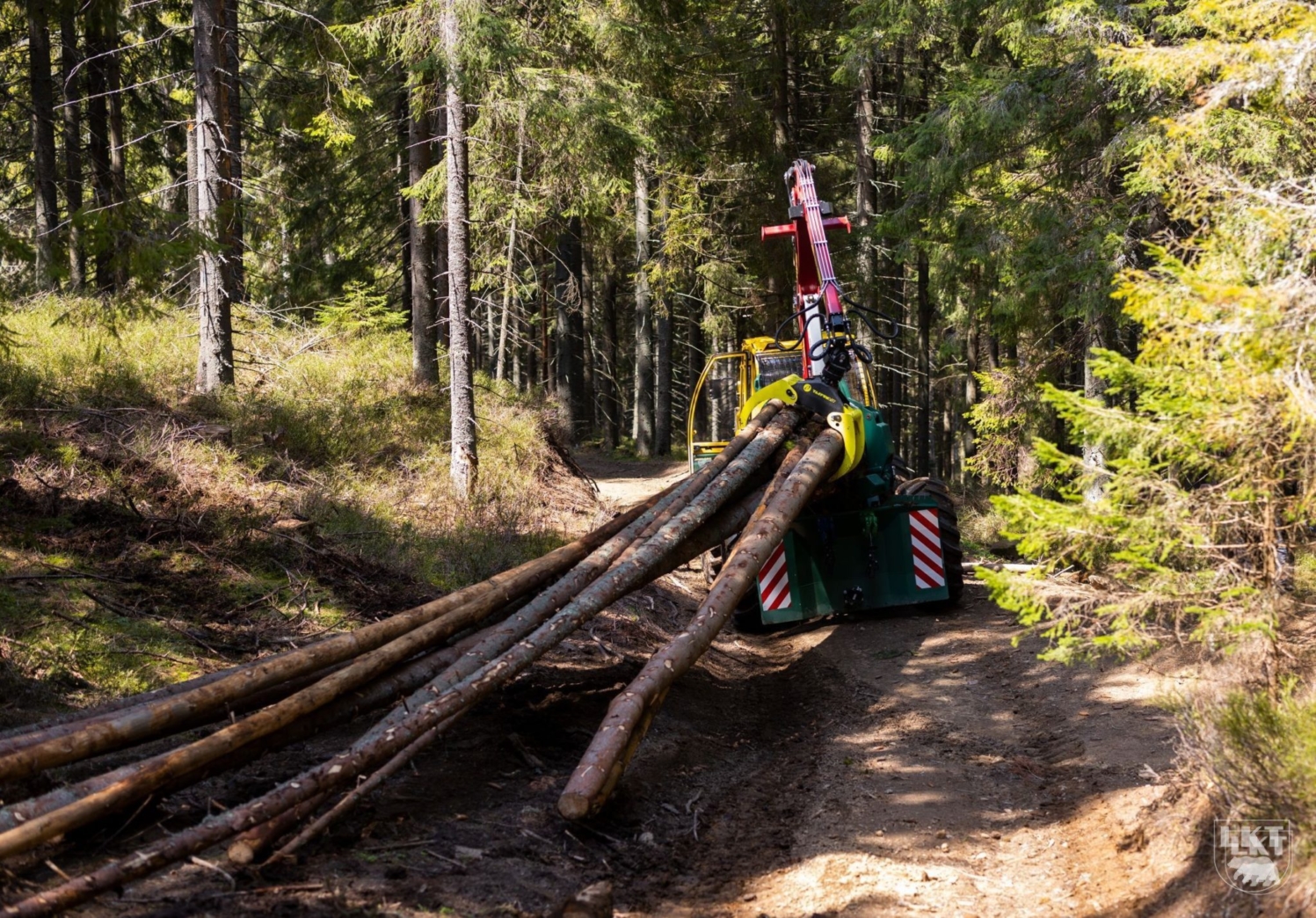

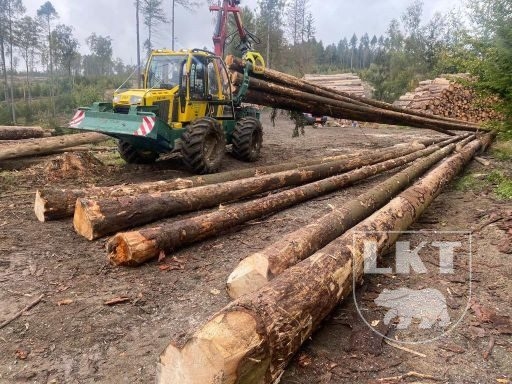

Extraction and approach will be provided by a double-drum winch 2×8 tons and assortment will be facilitated by a combined hydraulic double finger on the blade. The design with a short and light hydraulic arm up to 6 meters can be optimally used in the case of pulling logs using horsepower or iron horses, the assembly of the load and approach can be done using a hydraulic arm and a clamp on the rear shield. Great time savings in the operation of assembling the load and the actual handling of the wood. Logging with the help of a hydraulic arm, ensures space saving in the valley forest warehouses and transport points and increase cleanliness of the handled logs.

Main benefits

Safety cabine with a modern design provides higher operating comfort and allows an ideal view on working place and better material handling.
Two hydraulic articulations cylinders extend service life, improve stability and strength of the machine.
Possibility of a remote control for driving and steering simplifies the operation of the machine and improves safety work.

Engine

Engine
Engine	CUMMINS, F3.8, 90 kW, STG V.
Type	diesel, 4-stroke with turbocharger
Fuel tank	90 l

Steering
Type	fully hydraulical servo steering, articulation of half frames by means of 2 (two) hydraulic pistons
Control	steering wheel with emergency steering

Transmission

Transmission
Type	hydrostatic DANFOSS
Gearbox	two-gears DANA
Mode	work/ travel
Max speed	38 km/h

Axles
Producer	DANA
Differential	disc differential locking – electro-hydraulicaly operated
Service brakes	disc operation brakes with SAFIM brake valves, electro-hydraulical parking brake
Front axle	fixed
Rear axle	fixed

Tires
Size	540/65-28

Standard equipment

Cab
Certification	ROPS, FOPS, OPS
Seat	heated with air suspension

Winch
Type	2x 60 kN electro-hydraulicaly operated, double drum, free unwinching of the rope
Drive	hydromotor DANFOSS
Winch power	60 kN
Winching speed	0,8 m/sec. max
Rope – diameter/length	12 mm/90 m al. 13 mm/75 m

Front blade

Rear shield
tiltable, hydraulicaly operated with high pedestal, guiding rollers

Frames
pivoting of the frames through axial bearing with possible hydraulic locking

Hydraulic work pump
75 cm3/rev

Hydraulic tank
100 l

Hydraulic working pressure
200 bar

Electrical system
Voltage	24 V
Alternator	70A/28V
Baterries	12V/50Ah, 2 pcs
Starter	4 kW/24V

Weight
7 500 kg

Dimensions
LxWxH: 5.830 x 2.500 x 2.920 mm

Additional equipment

Options
Winch 2х80 kN, double drum, lamellas with ceramic lining, manual drive gear operated electro-hydraulically, max winching speed 0,8 m/s (rope diameter/lenght: 12mm/90m or 13mm/75m) lifting chain slings 2m WN-G10-8×24 + KSRV-8-G10 lifting chain slings 2,5m WN-G10-8×24 + KSRV-8-G10 lifting chain slings 2m WN-G10-10×235 + KSRV-10-G10 lifting chain slings 2,5m WN-G10-10×35 + KSRV-10-G10 skiding clamps GBGV 10-G10 10 pcs (2×5)
Rear shield tilting, rocker arm system, low pedestal with guiding rollers and protection arcs tilting, rocker arm system, low pedestal, with spherical guiding rollers, protection arcs and rotating stake tilting, rocker arm system, low pedestal, with spherical guiding and clampbunk

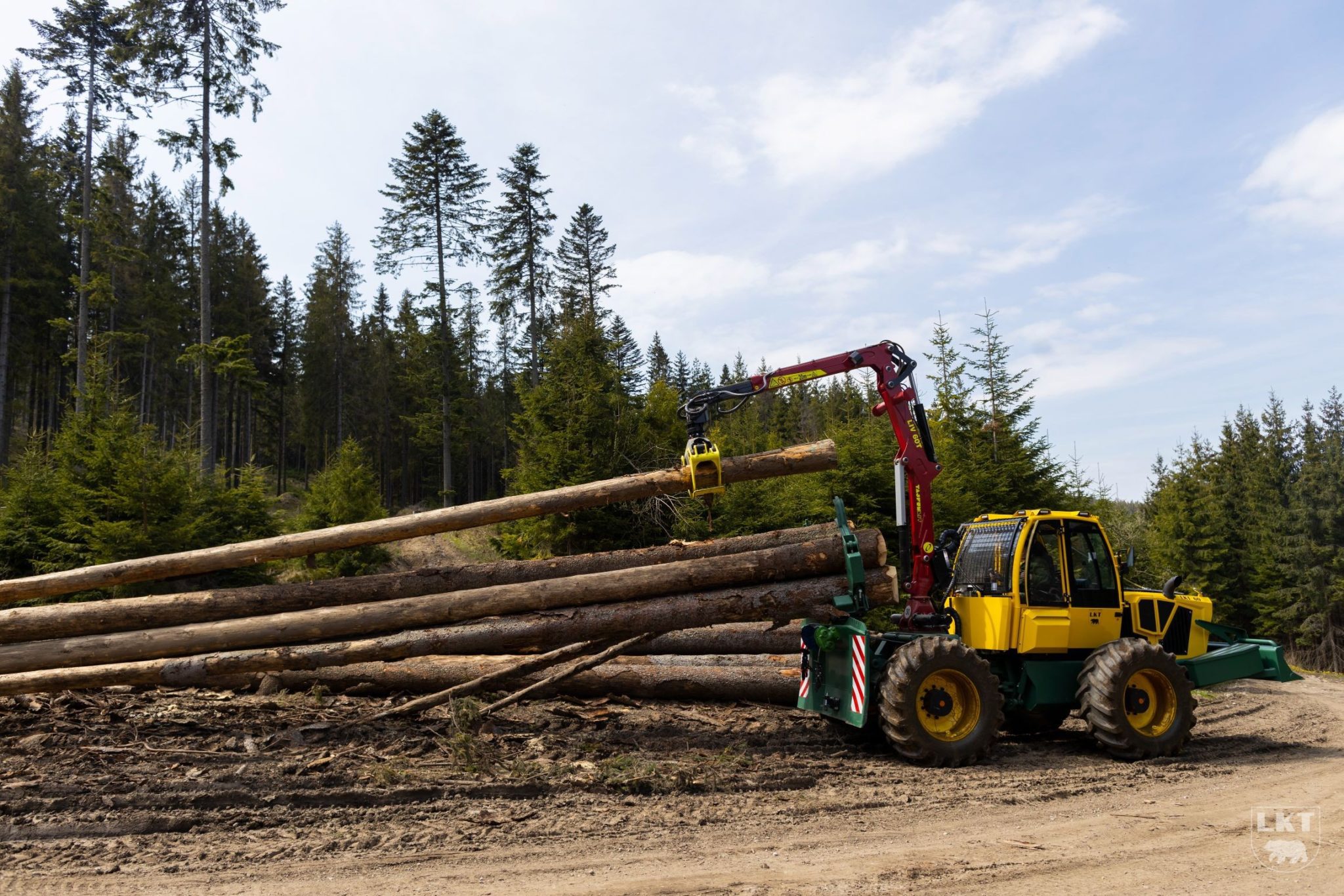

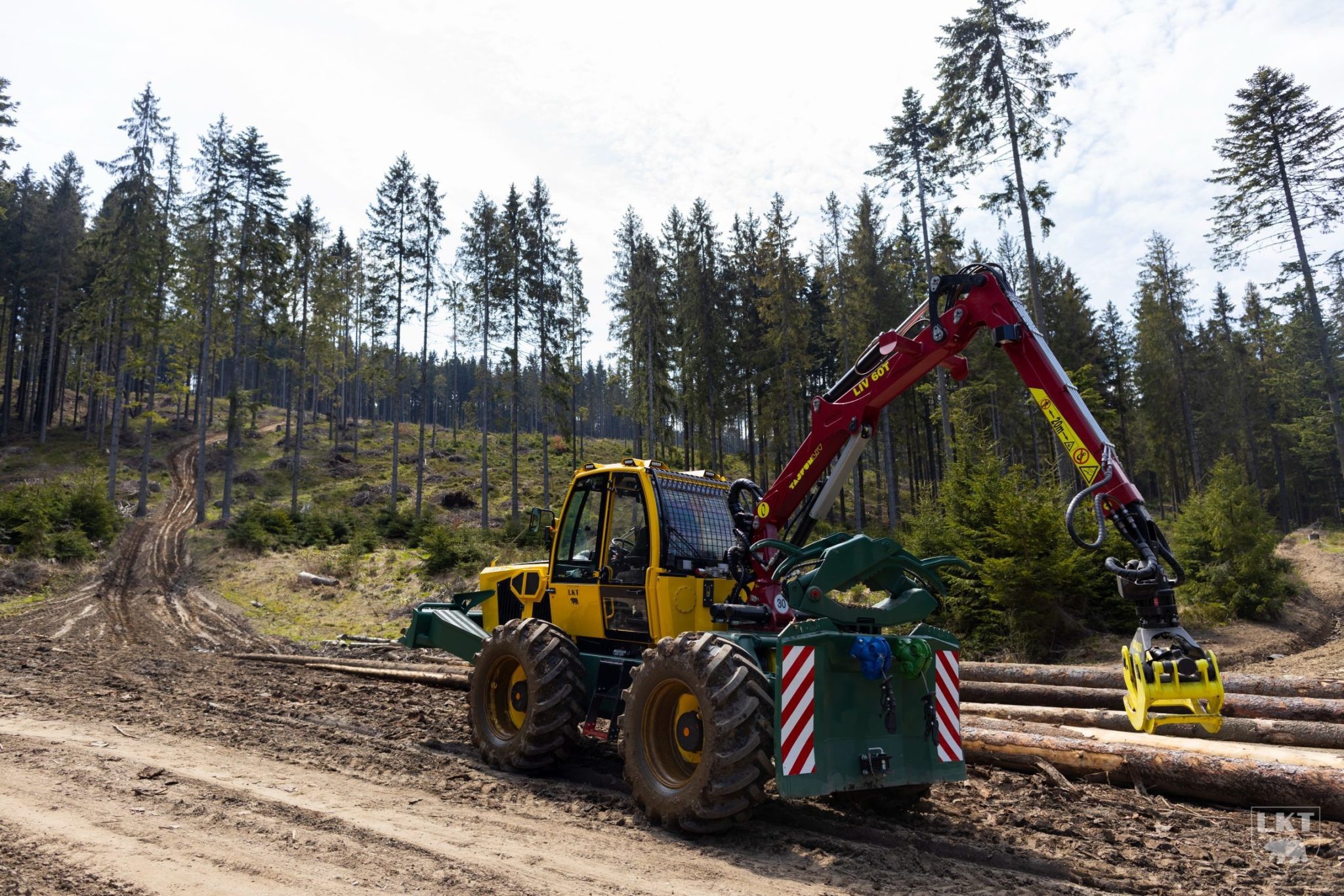

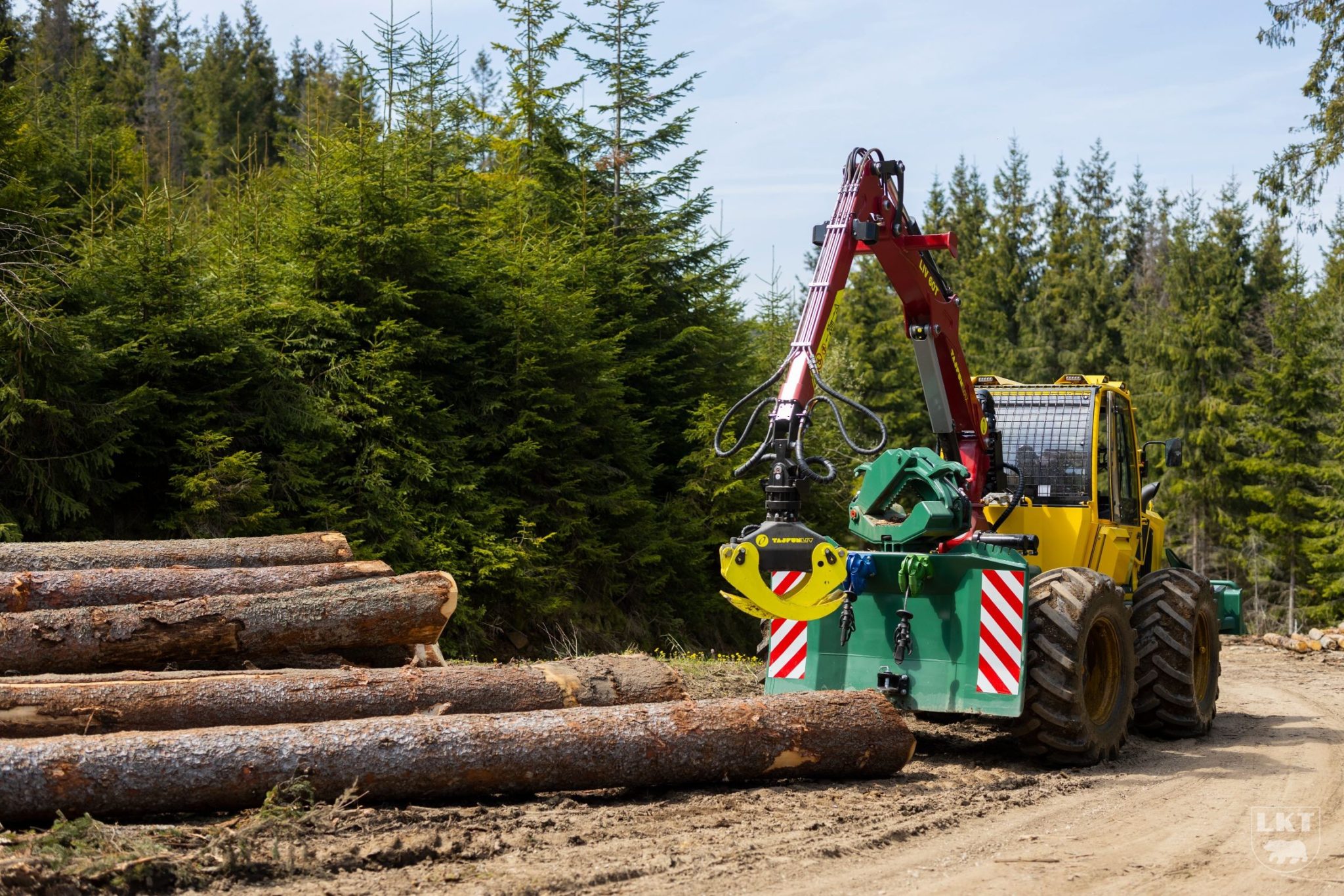

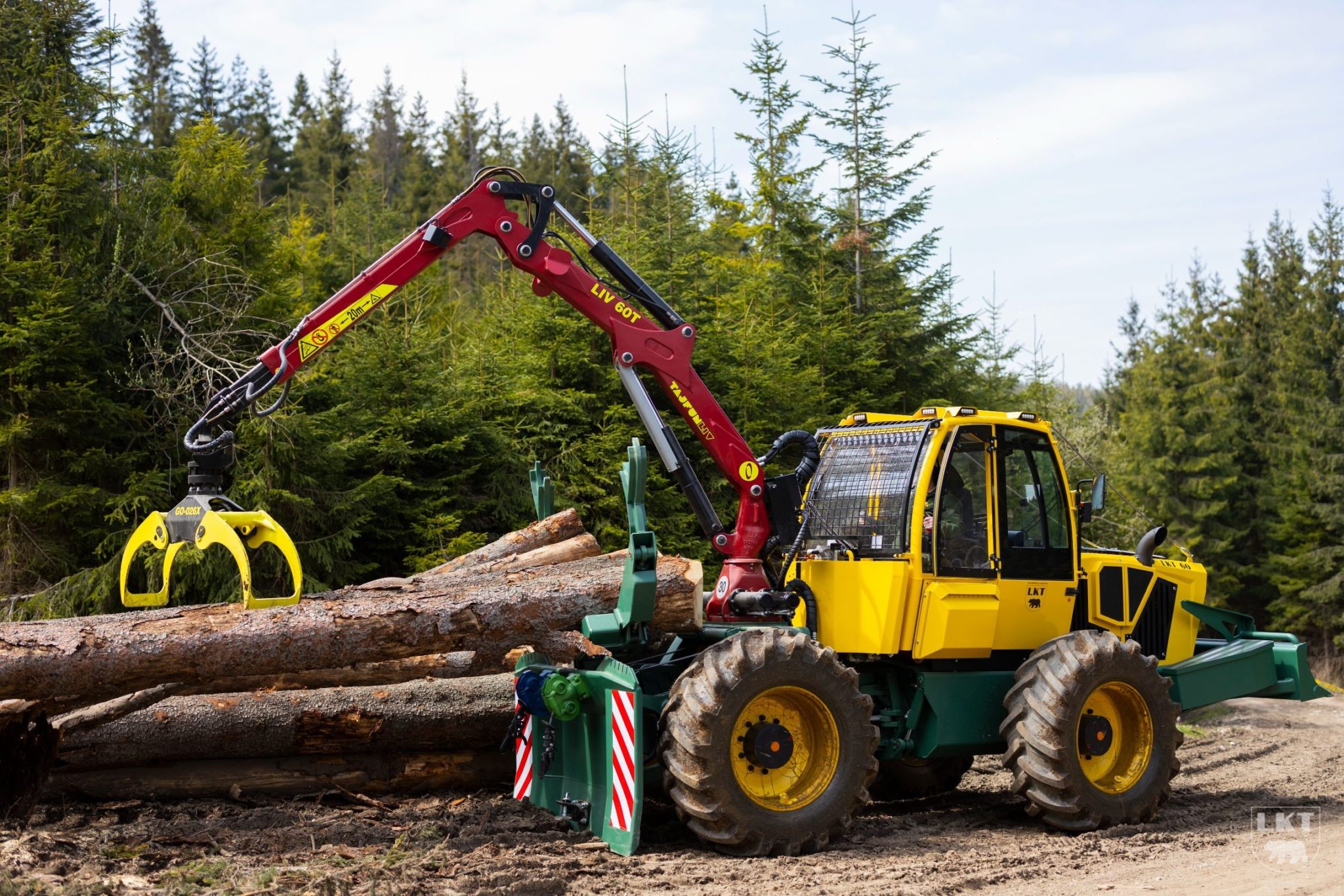

Hydraulic crane hydraulic crane TAJFUN 70 KS (58) with reach of 5,8 m with the possibility of folding the hand into transport position with working pressure up to 210 bar, including support frame, hydraulic coupling and electrohydraulic controls in operators’ cabin lights (2 pcs) on the boom graber GO 022 – for small size log graber GO 026 – for middle size log graber GO 037 – for big log sizes
Front blade blade with hydraulic pliers, designed for gripping logs and assortments during handling wood, electrically operated by joystick toolboxes on the front blade – storage boxes – 2 pcs
Tires incl. rims 600/65-28 anti-slip chains FG 196 3/2 SP (540/65-28) eye chain avarage: 12,5 mm, 1 pair anti-slip chains FG 212 6/1 SP (600/65-28) eye chain avarage: 15,5 mm, 1 pair anti-slip chains FG 212 3/2 SP (600/65-28) eye chain avarage: 12,5 mm, 1 pair anti-slip chains FG 212 3/1 SP (600/65-28) eye chain avarage: 12,5 mm, 1 pair
Remote control TERRA FUNK FA7 (start – stop system, travel control of machine, winches, rear shield and throttle regulation)
Cabin rotating workstation – seat heated with air suspension, mechanical swivelling, 2 joysticks, pedals in the front and in the rear protective seat covers mechanical swivelling seat (LKT) aircondition Webasto with independent cooler and ventilator radio with CD and USB port, 2 reproductors cab protection with protective iron grid rear window front side windows 2x upper rear side window 1x lower rear side window 1x upper part of door 1x lower part of door 1x light ramp on the cab – working LED lighting (4×2) safety bars on cabin engine preheating (heating of circulating cooling system)
Others working pump 90c m3/min working pump 100 cm3/ot coupler for trailer 10t hydraulic coupler – hydraulic quick couplings (for powering of attachments as: milling cutters, mulchers, drive and braking of the trailer) fuel flow meter hydraulic oil – BIO oil instead of mineral oil

Options

Winch

2х80 kN, double drum, lamellas with ceramic lining, manual drive gear operated electro-hydraulically, max winching speed 0,8 m/s (rope diameter/lenght: 12mm/90m or 13mm/75m)
lifting chain slings 2m WN-G10-8×24 + KSRV-8-G10
lifting chain slings 2,5m WN-G10-8×24 + KSRV-8-G10
lifting chain slings 2m WN-G10-10×235 + KSRV-10-G10
lifting chain slings 2,5m WN-G10-10×35 + KSRV-10-G10
skiding clamps GBGV 10-G10 10 pcs (2×5)

Rear shield

tilting, rocker arm system, low pedestal with guiding rollers and protection arcs
tilting, rocker arm system, low pedestal, with spherical guiding rollers, protection arcs and rotating stake
tilting, rocker arm system, low pedestal, with spherical guiding and clampbunk

Hydraulic crane

hydraulic crane TAJFUN 70 KS (58) with reach of 5,8 m with the possibility of folding the hand into transport position with working pressure up to
210 bar, including support frame, hydraulic coupling and electrohydraulic controls in operators’ cabin
lights (2 pcs) on the boom
graber GO 022 – for small size log
graber GO 026 – for middle size log
graber GO 037 – for big log sizes

Front blade

blade with hydraulic pliers, designed for gripping logs and assortments during handling wood, electrically operated by joystick
toolboxes on the front blade – storage boxes – 2 pcs

Tires incl. rims

600/65-28
anti-slip chains FG 196 3/2 SP (540/65-28) eye chain avarage: 12,5 mm, 1 pair
anti-slip chains FG 212 6/1 SP (600/65-28) eye chain avarage: 15,5 mm, 1 pair
anti-slip chains FG 212 3/2 SP (600/65-28) eye chain avarage: 12,5 mm, 1 pair
anti-slip chains FG 212 3/1 SP (600/65-28) eye chain avarage: 12,5 mm, 1 pair

Remote control

TERRA FUNK FA7 (start – stop system, travel control of machine, winches, rear shield and throttle regulation)

Cabin

rotating workstation – seat heated with air suspension, mechanical swivelling, 2 joysticks, pedals in the front and in the rear
protective seat covers
mechanical swivelling seat (LKT)
aircondition Webasto with independent cooler and ventilator
radio with CD and USB port, 2 reproductors
cab protection with protective iron grid
- rear window
- front side windows 2x
- upper rear side window 1x
- lower rear side window 1x
- upper part of door 1x
- lower part of door 1x
light ramp on the cab – working LED lighting (4×2)
safety bars on cabin
engine preheating (heating of circulating cooling system)

Others

working pump 90c m3/min
working pump 100 cm3/ot
coupler for trailer 10t
hydraulic coupler – hydraulic quick couplings (for powering of attachments as: milling cutters, mulchers, drive and braking of the trailer)
fuel flow meter
hydraulic oil – BIO oil instead of mineral oil

Attachments

Attachments to LKT 60
Trailers Type 1042 – w/o crane, short shaft for use with LKT equipped with crane, payload 10 t, drive 2×4 Type 1042 – w/o crane, short shaft for use with LKT equipped with crane, payload 10 t, drive 4×4
Harvestor Head harvestor head Nisula 325 H with control
Cutting head cutting head Nisula 175 E with control cutting head Nisula 205 E with control cutting head Nisula 285 E with control
Cutter single disc cutter double disc cutter
Three point hitch three point hitch
Mulcher mulcher

Attachments to LKT 60

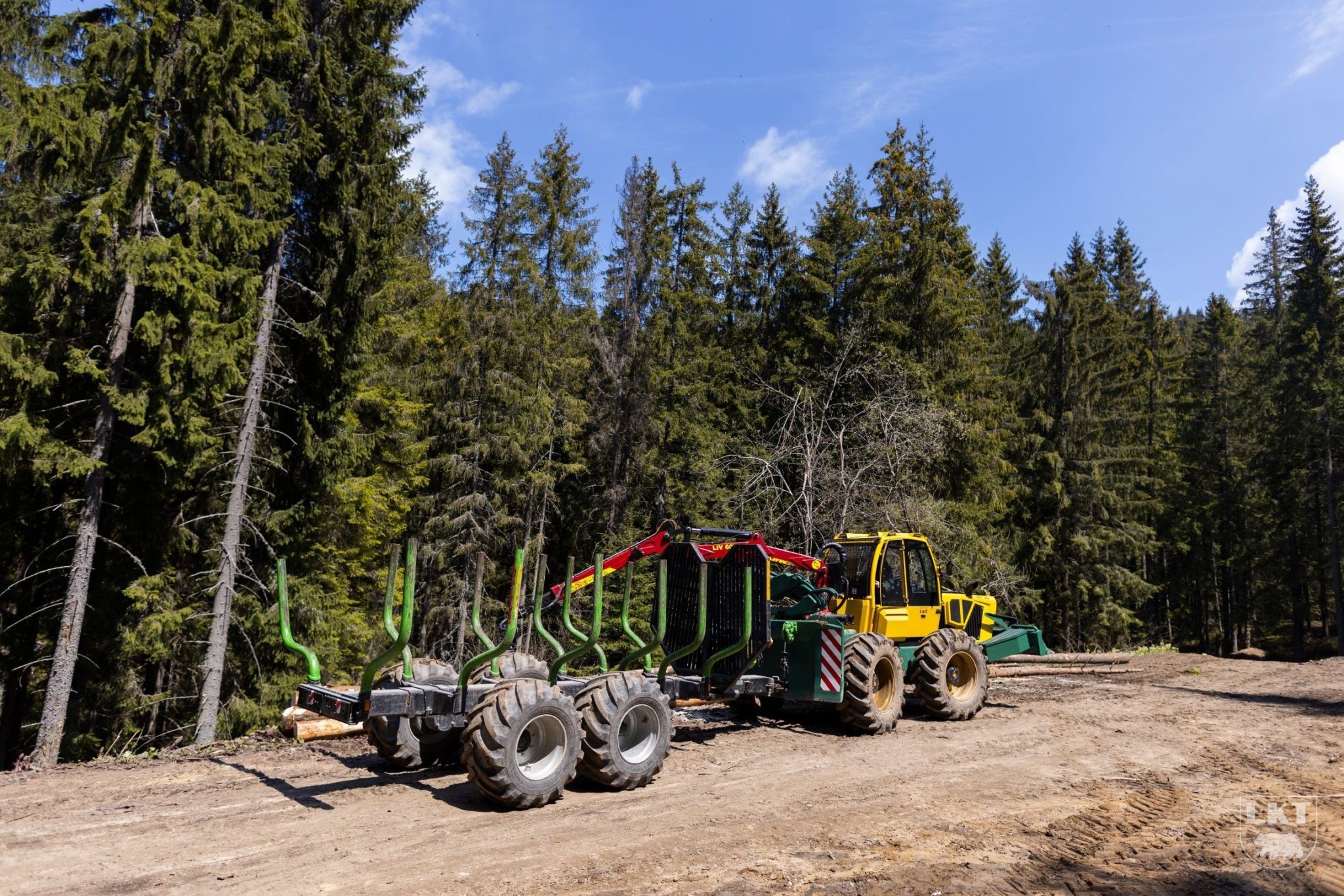

Trailers

Type 1042 – w/o crane, short shaft for use with LKT equipped with crane, payload 10 t, drive 2×4
Type 1042 – w/o crane, short shaft for use with LKT equipped with crane, payload 10 t, drive 4×4

Harvestor Head
