LKT 210

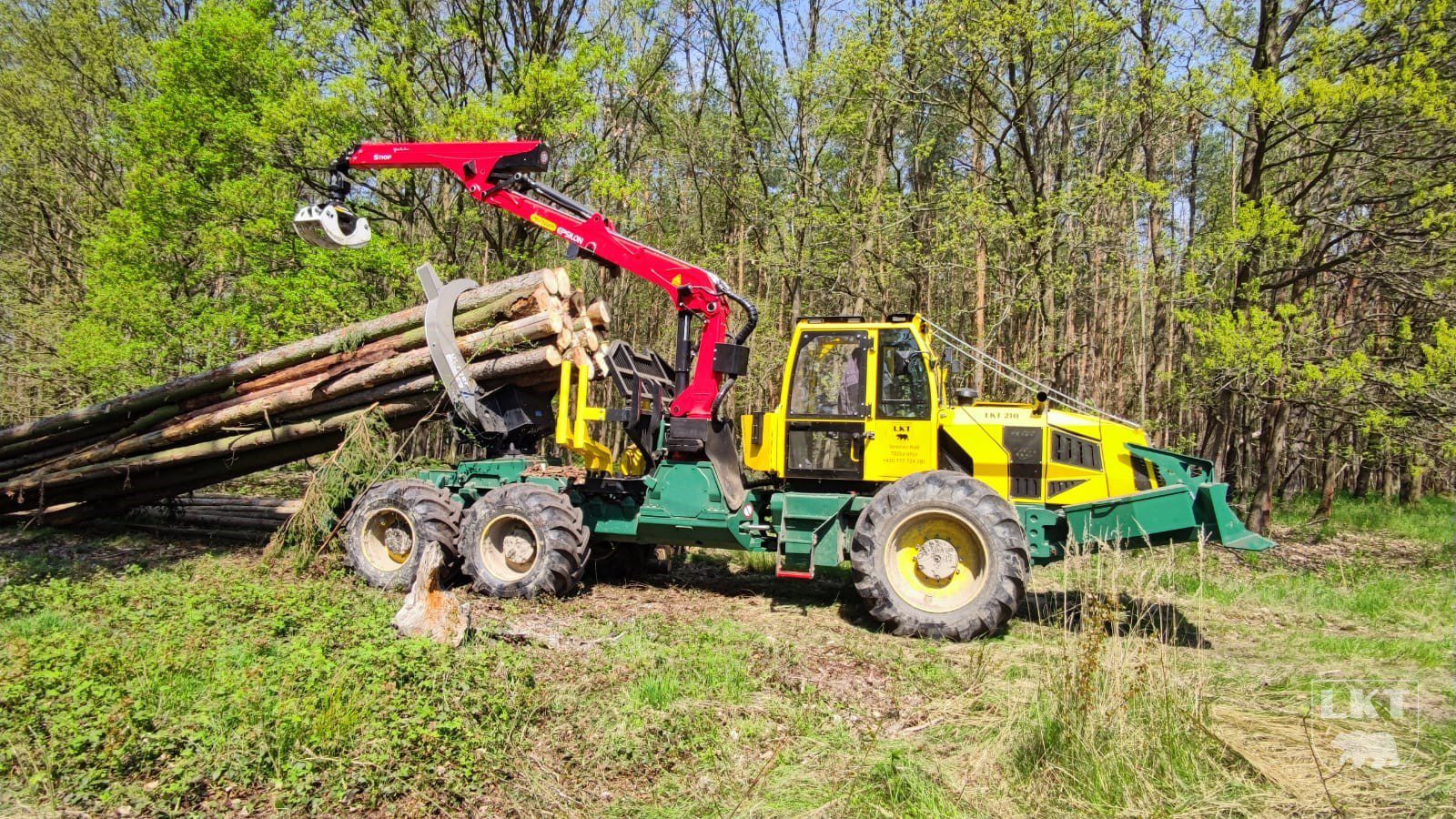

LKT 210 is an ideal solution for very changable work requirements from short to long assortments. It is equipped with a hydraulic arm, a clambunk and a double-drum winch. It is the most powerful LKT tractor with hydrostatic drive, automatic power control and a two-stage mechanical transmission

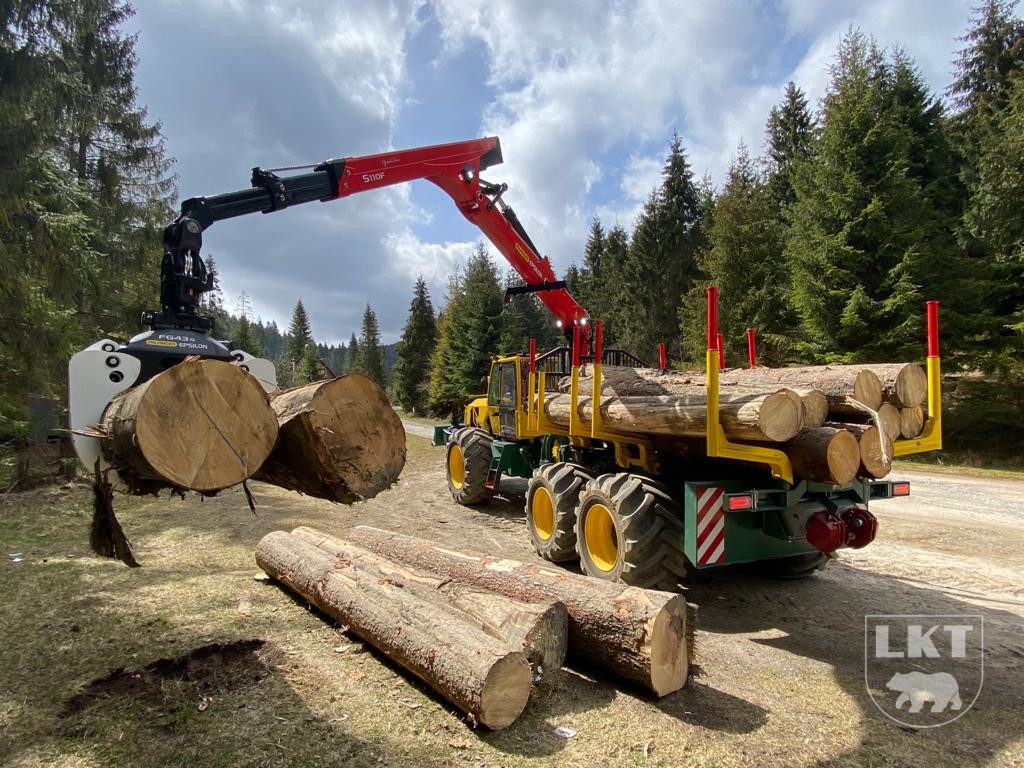

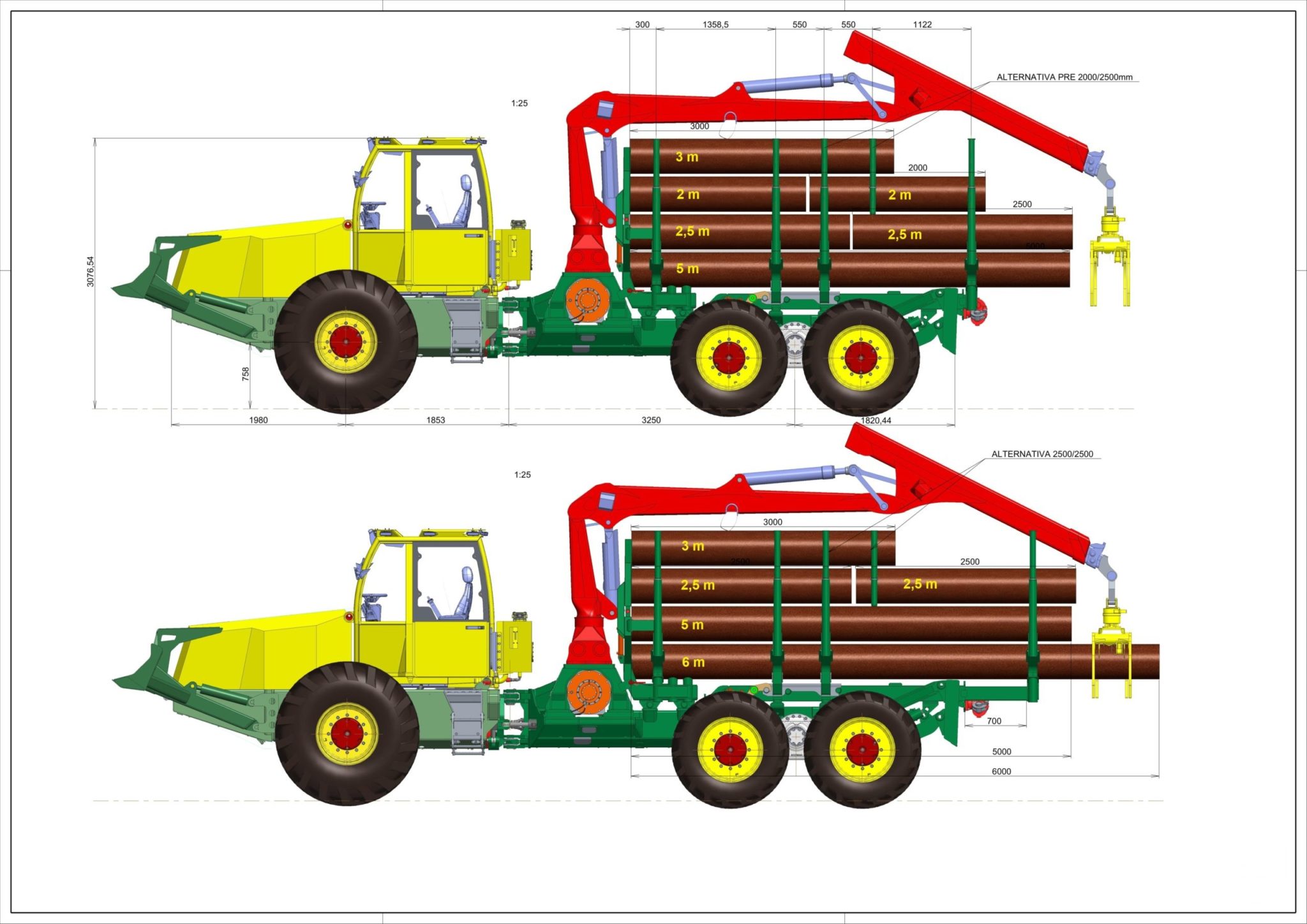

During pulling of short wood, there is possibility to leave the clambunk in a horizontal position with open jaws with pole function. During pulling of long wood, the last two pairs of poles of trailer are removed, and the clambunk jaws hold the wood and the security grid is lowered for a better view. A double-drum winch with a force of 2 × 100 kN and two 120 meter ropes with a diameter of 13 mm is always available for logging and allows to use the machine as a skidder. Thanks to removable clambunk the machine can be used as a standard forwarder. The control of the machine is ensured by hydraulic cylinders of articulating frames with locking possibility. The body of the front and rear frame is compact and extremely strong, what protects the engine, transmission, PTO shafts and axles. The bottom of the frames is without any protrusions, what helps to a problemfree off-road ride.

  • Safety cabine with a modern design provides higher operating comfort and allows an ideal view on working place and better material handling.

  • Two hydraulic articulations cylinders extend service life, improve stability and strength of the machine.

  • Optional possibility of a remote control for driving and steering simplifies the operation of the machine and improves safety work.

Engine
Engine Cummins QSB 6.7, 6 cylinder, 194 kW, STG V.
Type diesel, 4-stroke with turbocharger
Fuel tank 200 l
Steering
Type fully hydraulical servo steering, articulation of half frames by means of 2 (two) hydraulic pistons
Control steering wheel with emergency steering
Transmission
Type hydrostatic DANFOSS, axial regulation pump, drive automatics, axial regulation hydromotor
Gearbox 2-gears hydraulic dropbox with two hydromotors
Mode work/travel
Max speed 34 km/h
Axles
Producer NAF
Differential disc differential locking – electro-hydraulicaly operated
Service brakes disc operation brakes with SAFIM brake valves
Parking brake electro-hydraulical parking brake
Front axle fixed
Rear axle  fixed type boogie
Tires
Size
  • front 600/65-34
  • rear 600/55-26.5
Cab – inovated
Certification ROPS, FOPS, OPS
Seat with air suspension, heated, ventilated with rotating workstation and mechanical swivelling
Winch
Type 2×100 kN double drum, free unwinding of the rope
Drive hydromotor DANFOSS
Winch power 2×100 kN
Winching speed 1,2 m/sec. max
Rope – diameter/length 12 mm/90 m or 13 mm/75 m
Hydraulic crane
Hydraulic crane Epsilon Palfinger S110F101 with a reach of 10,1 m with the possibility of folding the hand into transport position with processing pressure up to 220 bar, floating position, woodlogs support, including support frame, hydraulic coupling and electrohydraulic controls in operators cabin, incl. grab FG43S
Stake platform
with spherical guiding rollers, 3 + 1 mechanically retractable pair of stakes (+700 mm)
Rear shield
tiltable, hydraulically operated, liftable backframe, spherical rollers on the tiltable frame
Rear protection grid
rigid
Frames
pivoting of the frames through axial bearing with possible hydraulic locking
Hydraulic tank
155 l
Hydraulic working pressure
240 bar
Electric system
Voltage 24 V
Alternator 70A/28V
Baterries 12V/50Ah, 2 ks
Starter 4 kW/24V
Weight
18 500 kg
Dimensions
LxWxH: 10.120 x 2.550 x 3.520 mm
Options
Winch

  • 2х100 kN, two-speed winch equipped lamellas with organic lining, automatic electrohydraulic control with maximum winding speed 1,2m/s, rope diameter/lenght: 12mm/140m or 13mm/120m)
  • 2х120 kN, two-speed winch equipped lamellas with organic lining, automatic electrohydraulic control with maximum winding speed 1,2m/s, rope diameter/lenght: 12mm/140m or 13mm/120m)
Stake platform

  • stake platform: with hydraulic lifting of the rear part, 3 + 1 mechanically retractable pair of stakes (+700 mm)
  • stake platform: with hydraulic lifting of the rear part, 3 + 1 hydraulically retractable pair of stakes (+700 mm)
Protection grid

  • hydraulically tiltable protection grid
Hydraulic crane

  • Hydraulic crane X120 F102 Epsilon Palfinger
  • Hydraulic crane X140 F102 Epsilon Palfinger
Grab

  • Grab FG57X – for big and extreme log sizes for crane type S
Clampbunk

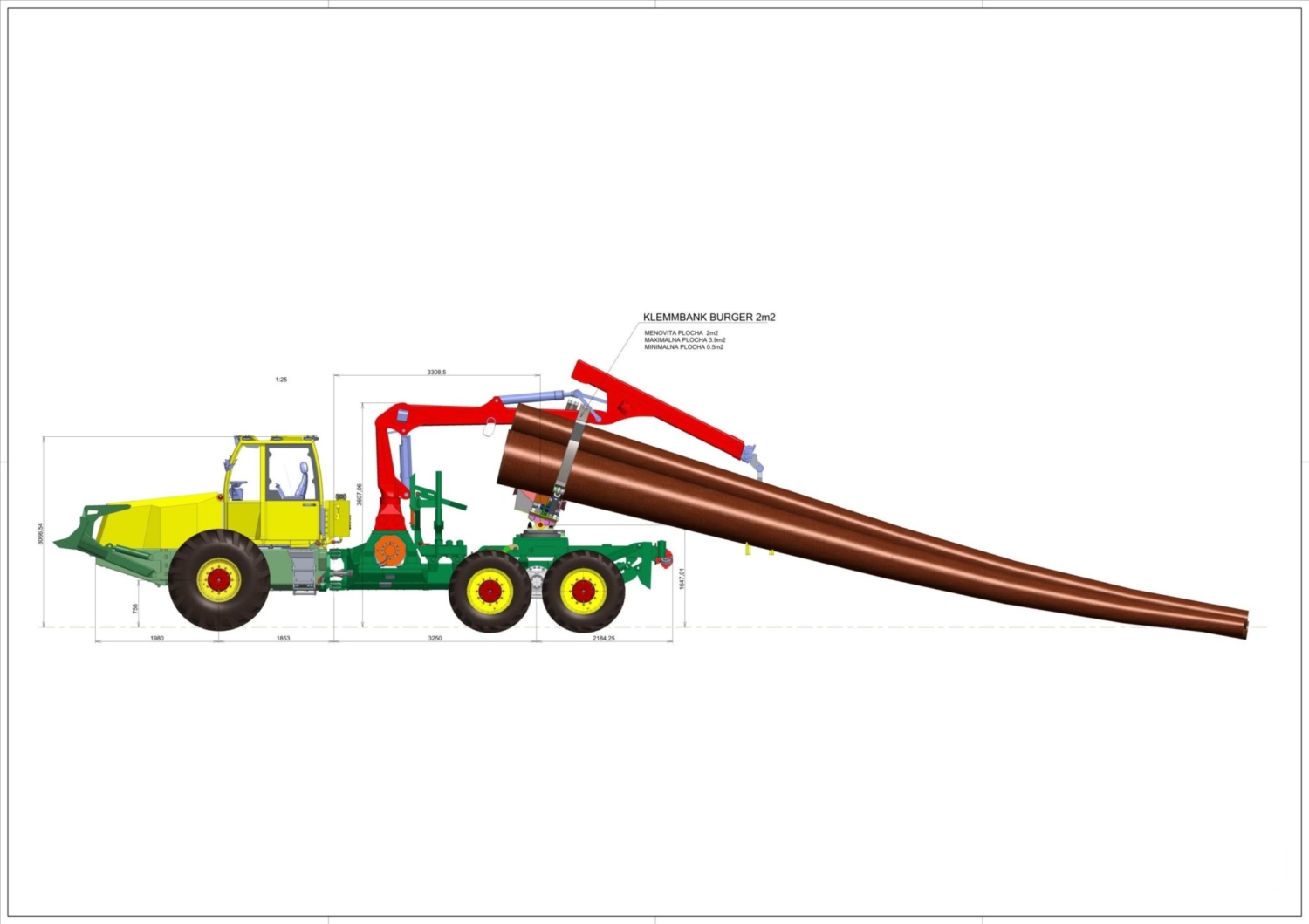

  • 1,6 m2 (Burger) – removable, rotating 180˚
  • 2 m2 (Burger) – removable, rotating 180˚
Rear shield

  • spherical rollers with hydraulical motors for unwinching of the rope – 2 pcs

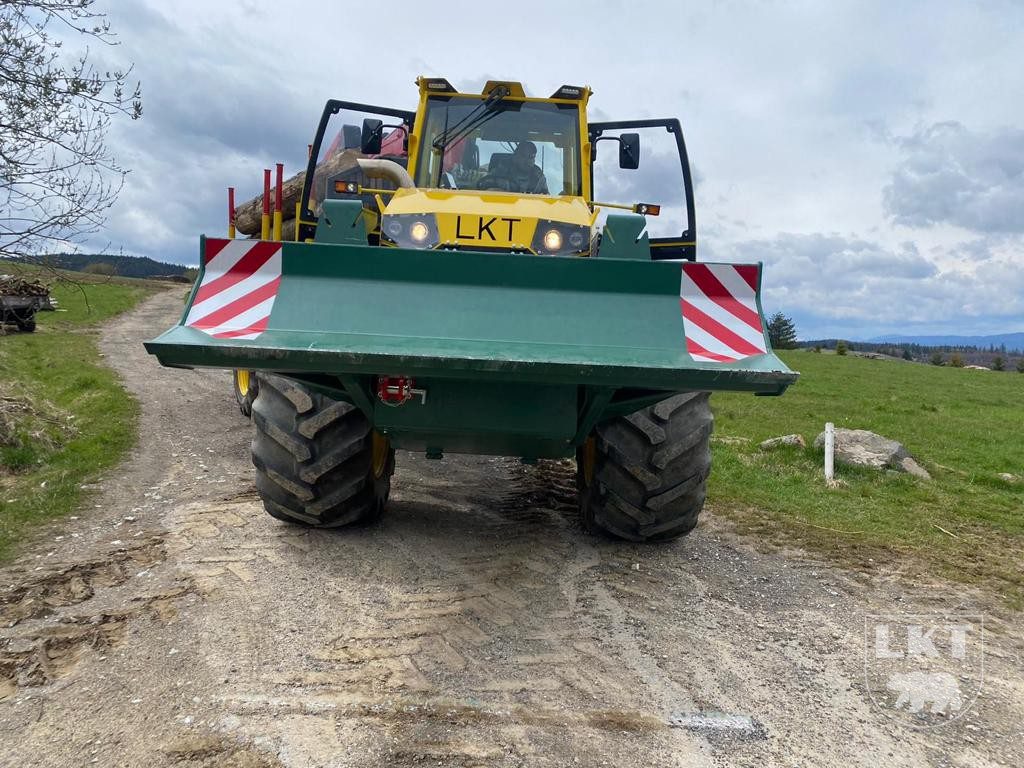

Front blade

  • front blade
  • toolboxes on the front blade – storage boxes – 2 pcs
Tires incl. rims

  • Dimensions 710/65-34 front, 710/55 – 26,5 rear
  • Anti-slip chains with diameter 14mm – pair
  • Anti-slip chains with diameter 16mm – pair
  • Chain tracks
Cab

  • rotating workstation – seat with mechanical swivelling and electric brake
  • protective seatcovers (LKT)
  • air-condition Eberschpecher with independent cooler and ventilator
  • camera incl. monitor
  • radio with USB port, 2 reproductors
  • cab protection with protective iron grid
    • rear window 1x
    • front side window 2x
    • upper rear side window 1x
    • lower rear side window 1x
    • upper part of door 2x
    • lower part of door 2x
  • side working LED lighting (2×2)
  • engine preheating (heating of circulating cooling system)
Attachments for LKT 210 Kombi
Harvestor head

  • Harvestor head Nisula 425 C with control
  • Harvestor head Nisula 425 H with control
  • Harvestor head Nisula 500 C with control
  • Harvestor head Nisula 500 H with control
Cutting head

  • Cutting head Nisula 205 E with control
  • Cutting head Nisula 285 E with control
  • Cutting head Nisula 285 E+ with control
Leaflet LKT 210

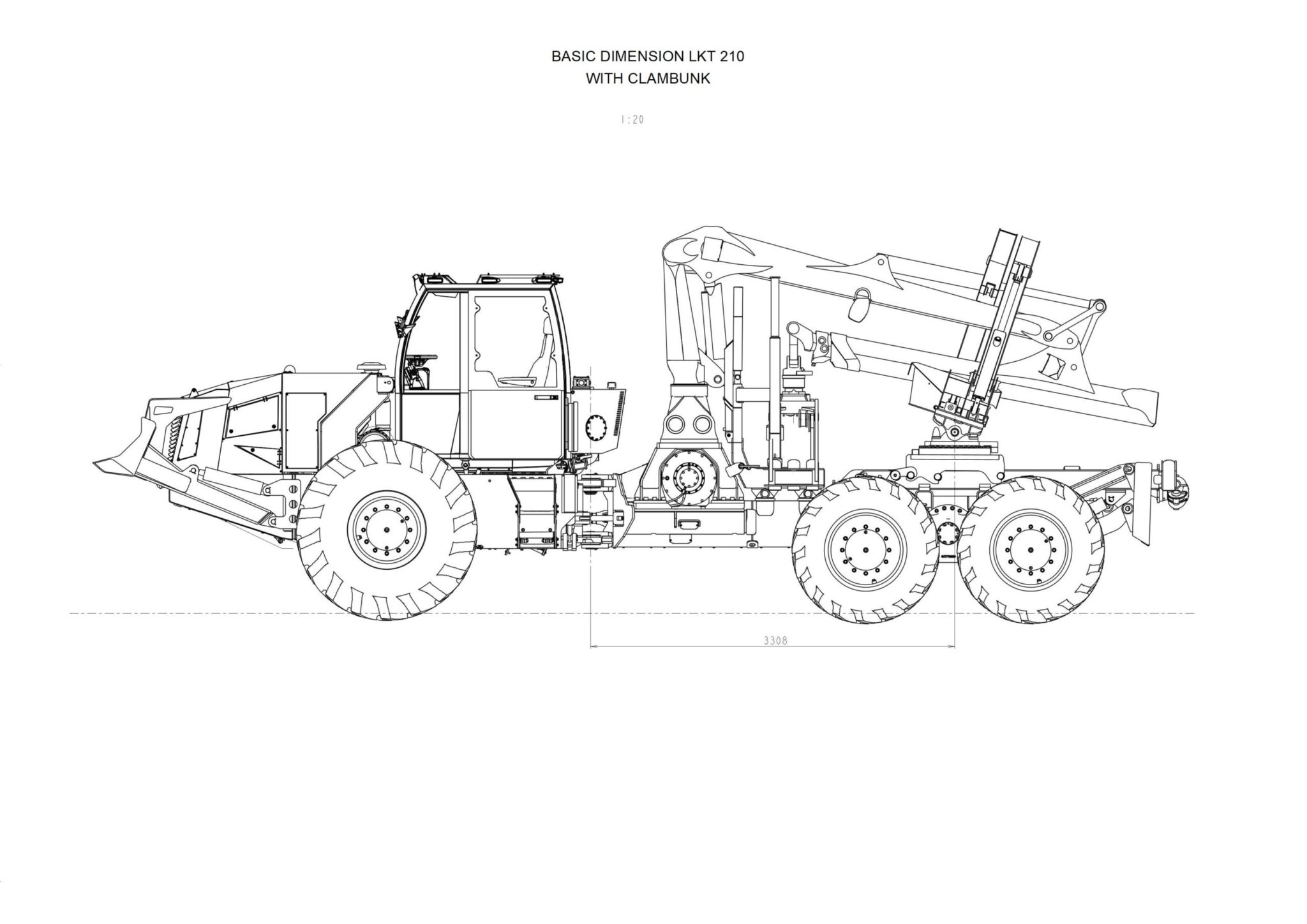

Technical information LKT 210 (Basic dimensions with Clambunk)

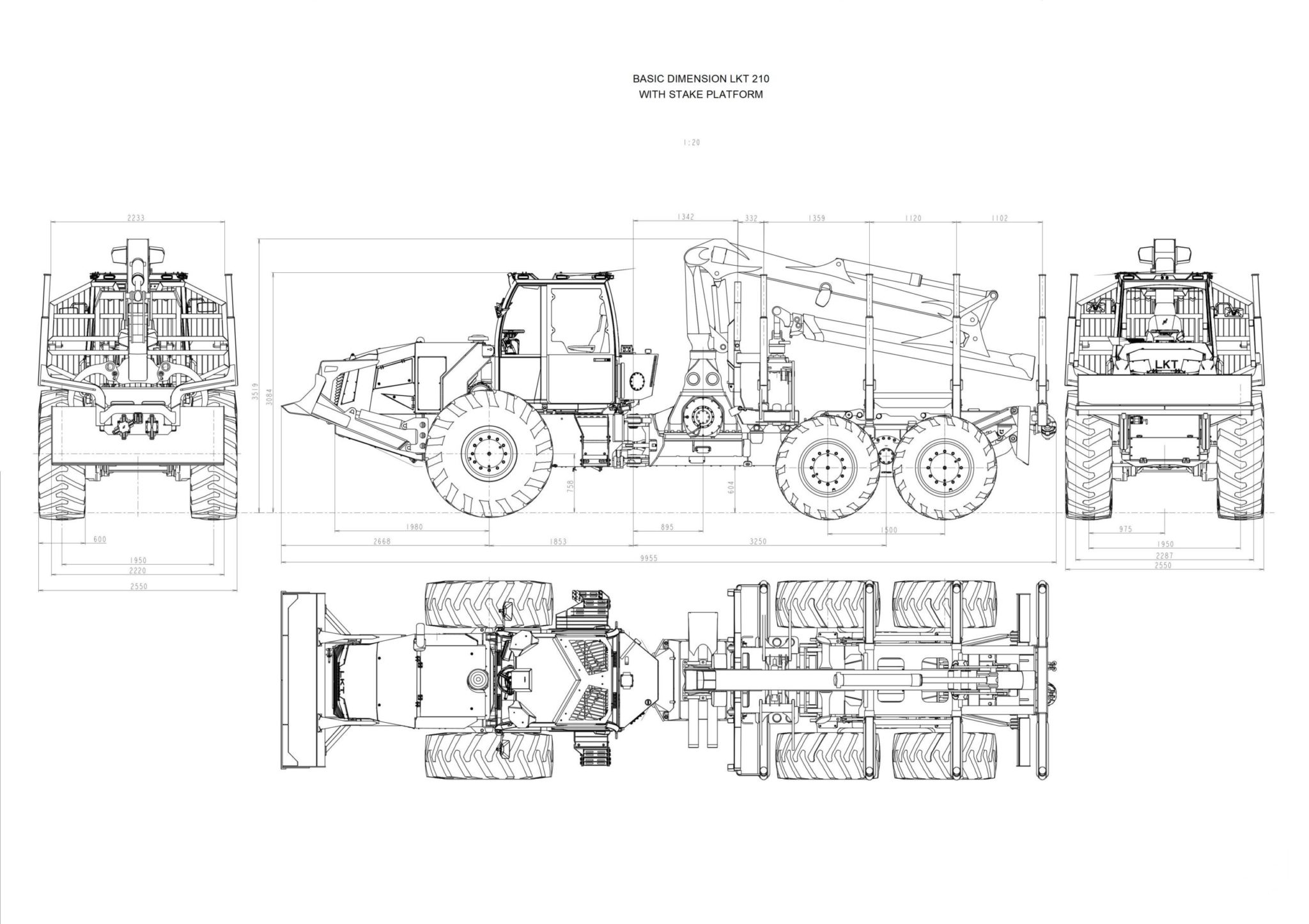

Technical information LKT 210 (Basic dimensions with stake platform)

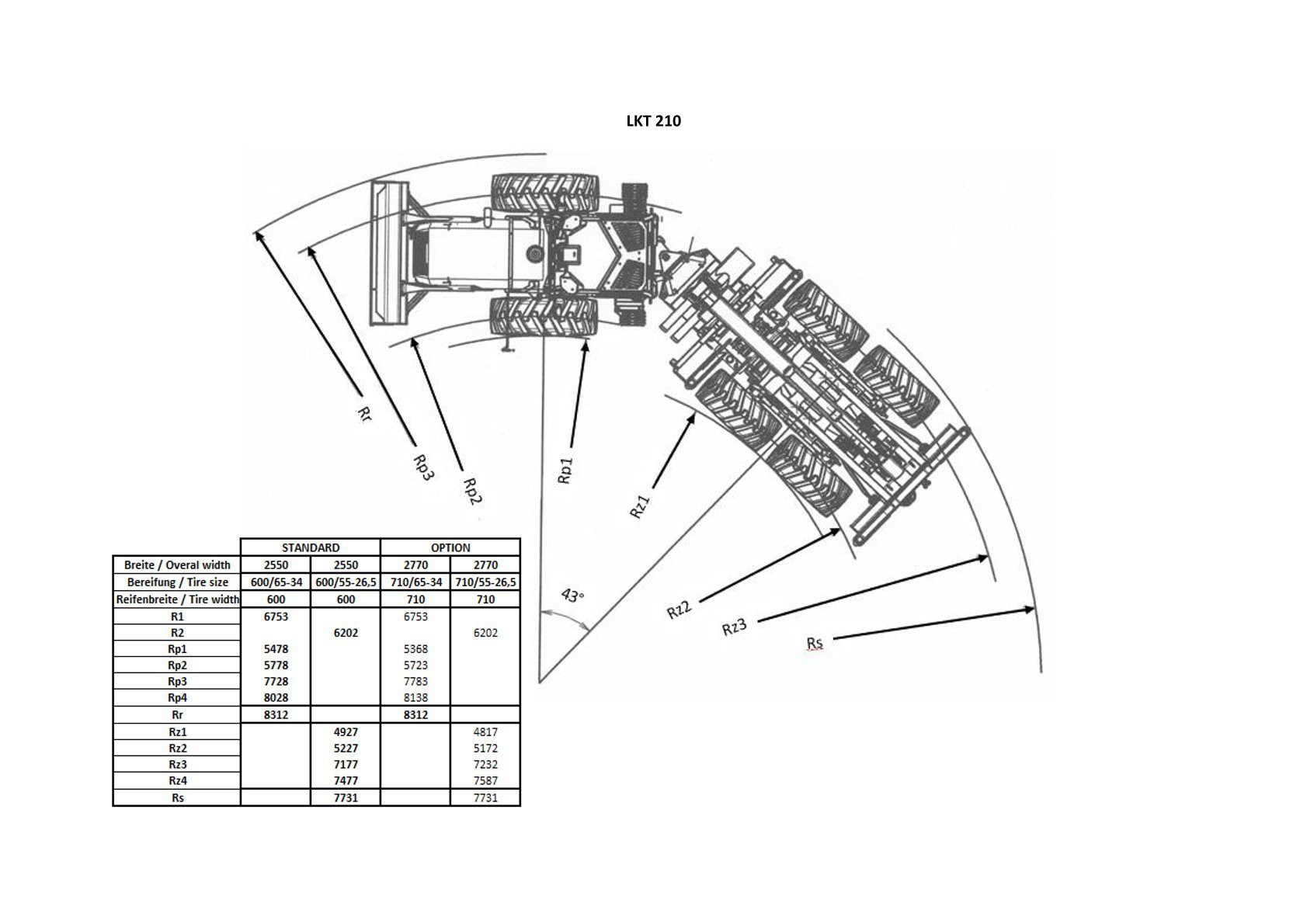

Technical information LKT 210 (Radius of frame breaks for 43° steering angle)
